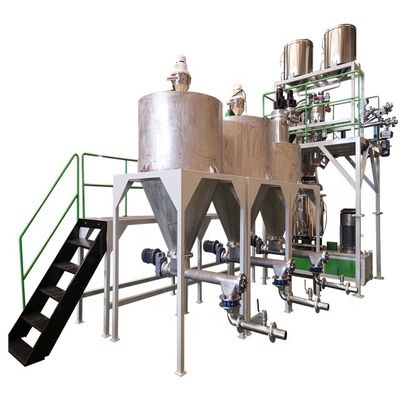

Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System

Certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System

Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System

Large Image :  Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System

Product Details:
Place of Origin: CN;JIA
Brand Name: BEISU
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 2 Sets
Price: $37,000.00
Packaging Details: Plastic film packing or wood package as customer requirements
Supply Ability: 250 Set/Sets per Year
Detailed Product Description
Condition: New Material: Stainless Steel
Output (kg/h): 200 - 2000kg/h Capacity (kg): 200~1000
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Pump, Pump, Pump, Pump, Pump, Pump, Pump Application: Plastic Mixer
Automatic Grade: Automatic Voltage: Customzied
Dimension(L*W*H): Customized Warranty: 1 Year
After-sales Service Provided: Video Technical Support, Video Technical Support, Video Technical Support, Video Technical Support, Video Technical Support Weight (KG): 220 KG
Power (kW): 3 Applicable Industries: Food & Beverage Factory, Food & Beverage Factory
After Warranty Service: Field Maintenance And Repair Service, Field Maintenance And Repair Service, Field Maintenance And Repair Service, Field Maintenance And Repair Service Local Service Location: None, None, None, None
Showroom Location: None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None Raw Material: PVC/PE/PP Powder, Granules Or Liquid
Mixing Speed: 860 RPM Material Of Mixing Blade: S.S304
Method Of Mixing Blade: Double Propellers Hot Mixing Motor Power: 55Kw Or 75Kw Or110Kw Or 130Kw
Mixing Bearing Brand: NSK, SKF Or WANFANDIAN Cold Mixing Drive Method: Belt Reducer
Temperature Brand: OMRON,JAPAN Contactor Brand: SCHNEIDER Or SIEMENS
Inverter Brand: Delta Or ABB Port: SHANGHAI Or NINGBO PORT
Highlight:

2000kg/H Pvc Mixer Machine

,

3kw Pvc Mixer Machine

,

3kw automatic pvc mixer machine


Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 0
Application of high-speed mixer: The high-speed and high-efficiency mixer and automatic weighing and oil mixing system manufactured by BEISU Machinery are particularly suitable for efficient and uniform mixing of solid-liquid, solid-powder, powder-powder, and powder-liquid. Products are widely used in fine chemicals, feed, electronics, food, hard materials, ceramic materials, biology, medicine, non-metallic mining, building materials, coatings, dyes, fertilizers and metal powders for better mixing. Shear sensitive crystalline powder, batch product mixing, mixing liquid into solid.

The working principle of the central feeding system: The central feeding system realizes the centralized processing of raw materials. Through a closed conveying system, a one-to-many automatic controller sends a variety of different raw materials to each molding machine as required, which saves energy and reduces noise and pollution. The most ideal automatic system. For the raw materials that have been dried in the raw material preparation area, we will transport the dry air to prevent the raw materials from being damp again. The advanced central controller and the pulsating dust collector design prevent the system from clogging thing.
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 1
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 2
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 3
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 4
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 5
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 6
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 7
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 8
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 9
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 10
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 11
Vertical type High speed mixer:
Model
Total volume
Available capacity
Motor power
Shaft speed
Heating method
SHR-5A
5L
3L
1.1Kw
1400rpm
Self friction/electric
SHR-10A
10L
7L
3Kw
2000rpm

SHR-25A
25L
20L
5.5Kw
1440rpm

SHR-50A
50L
35L
7/11Kw
750/1500rpm

SHR-100A
100L
75L
14/22Kw
650/1300rpm

SHR-200A
200L
150L
30/42Kw
475/950rpm

SHR-300A
300L
225L
40/55Kw
475/950rpm

SHR-500A
500L
375L
47/67Kw
430/860rpm

SHR-800A
800L
600L
60/90Kw
370/740rpm

Vertical type High speed mixer:
Model
SRL-Z100/200
SRL-Z200/500
SRL-Z300/600
SRL-Z500/1000
SRL-Z800/1600
Total volume
100/200
200/500
300/600
500/1000
800/1600
Effective volume
75/160
150/320
225/400
375/650
600/1050
Shaft speed
650/130/180
475/950/130
475/950/60
430/860/60
370/740/50
Heat method
Self friction/electric




Heat method
Water




Mixing time
6-10
6-10
6-10
6-10
8-12
Motor power
14/22/7.5
30/42/7.5
40/55/11
55/75/11
110/30
Horizontal type High speed mixer:
Model
SRL-W500/1600
SRL-W800/2000
SRL-W800/2500
SRL-W800*2/4000
Total volume
500/1600
800/2000
800/2500
1600/4000
Effective volume
330/1000
560/1400
600/1500
1120/2700
Shaft speed
430/860/70
330/660/55
330/660/60
350/700/65
Heat method
Self friction/electric



Heat method
Water



Mixing time
8-12
8-12
8-12
8-12
Motor power
55/75/22
86/110/22
86/110/22
110*2/30
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 12
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 13
The structure of the central feeding system:
A1:The automatic feeding system consists of a vacuum pump (no oil or water), stainless
steel suction nozzle, delivery hose, PE filter (or 316L stainless steel filter), compressed air blowback equipment, pneumatic discharge door equipment, vacuum hopper and material It is composed of automatic control equipment, and the whole system is well planned and exquisitely produced.
A2:The automatic feeding system is divided into two types: gap discharge and continuous discharge.
The gap discharge is beneficial to reduce the capital expenditure of the equipment and facilitate the control of the material level. Continuous discharge is generally used for vacuum transportation of materials during long distances and large output values.
A3:The automatic feeding system can automatically transport various materials to the hoppers of packaging machines, injection molding machines, crushers and other equipment, and can also directly transport the mixed materials to the mixer (such as V-type mixer, two-dimensional mixer, In the three-dimensional mixer, etc.), it reduces the labor intensity of workers and solves the problems of dust overflow during feeding. It is a reliable equipment for pharmaceutical factories and food factories that have passed GMP certification to promote clean and civilized production.
A4:The automatic feeding system uses a vacuum pump to pump air, so that the entire system such as the inlet of the suction nozzle and the vacuum automatic metering system is in a certain vacuum condition.
A5:The powder and granular materials are sucked into the nozzle with the outside air to form a material flow and arrive through the suction pipe. The hopper is used to separate the gas and materials in the hopper.
A6:The separated materials enter the receiving equipment. Feeding and discharging are completed by continuously opening and closing the Pneumatic three-way valve, and the opening and closing of the pneumatic three-way valve is controlled by the control center.
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 14
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 15
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 16
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 17
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 18
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 19
Fully Automatic 2000kg/h Pvc Mixer Machine With Online Dosing System 20
