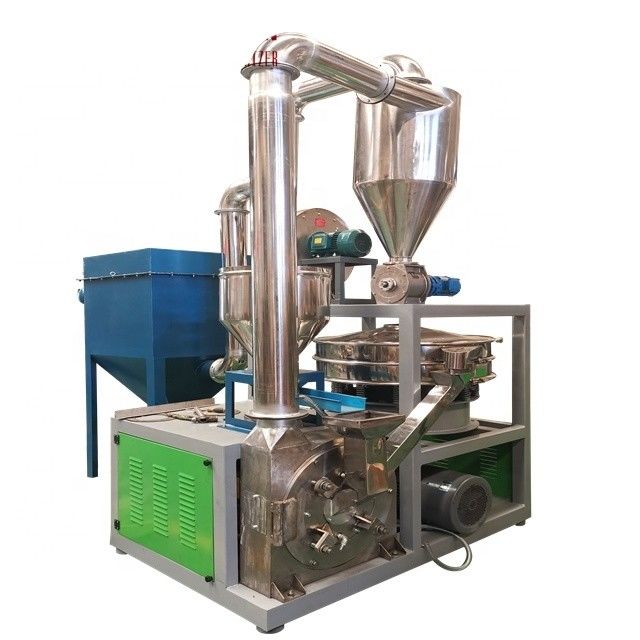

440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control

Certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control

440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control
440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control
video play

Large Image :  440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control

Product Details:
Place of Origin: CN
Brand Name: BEISU
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $15,000.00
Packaging Details: Film packing or wood package as customer requirements
Supply Ability: 200 Set/Sets per Year for plastic pulverizer machine
Detailed Product Description
Output (kg/h): 100 - 500kg/h Feeding Size (mm): 8 - 10 Mm
Output Size (mesh): 20 - 80 Mesh Power (kW): 45
Range Of Spindle Speed(r.p.m): 2900 - 3700 R.p.m Type: Pulverizer
Voltage: 220V/380V/415V/440V Dimension(L*W*H): 2000mm*2800mm*3200mm
Weight (KG): 2000 KG Key Selling Points: Automatic
Raw Material: PVC/WPC/PE/LDPE/LLDPE/PET/ABS/EVA/TPE/HDPE Motor Power: 45Kw
Material Blade: SKD-11 Or Stainless Steel Or Tungsten Steel Blade Type: Disc
Off Fan Blower Motor Power: 0.75Kw Fan Blower Motor Power: 7.5Kw
Bearing Brand: NSK Or SKF Or Wafandian OIL Filling System: Oil Pump
Dust Collection Type: Bag Contactor Brand: SIEMENS
Port: SHANGHAI Or NINGBO PORT
High Light:

ABB inverter control PE Pulverizer

,

500kg Per Hour PE Pulverizer

,

440V PE Pulverizer


440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control 0

BEISU MF series Plastic pulverizer/plastic grinder is a prefect machine for processing and grinding thermoplastics material, such as PVC, PE, PP, EVA, PLA, ABS etc, with high output and thin powder. The MF series automatic plastic grinder/plastic pulverizer is disc-type plastic grinding mill series, which has the advantages of high-yield and low-power.



The performance characteristics of the disc-type plastic pulverizer mill:

A1: With water cycle and wind cooling, the machine can be applied into processing heat sensitive material.

A2: With the tail-wagging air stream (partly eddy flow) produced by the tail-wagging of the main shaft capstan of the machine, the input tail-wagging materials collide strongly with the board and the cutting blade, and was grinded into powdery (without sieving).

A3: Both the board and the cutting blade are made of abrasion-resistant steel, with excellent performance after heat treatment.

A4: With severeness of framework, the volume of the machine is quite small. If you open door closure, you can maintain it. It is completely airproof and without any dust leakage.

A5: With winding reclaiming equipment, the machine is features by cooling materials evenly, quick cooling and some other characteristics.

A6: The new disc design is used, high-yield, strong resistance and the life of this grinding disc is double than the ordinary.

A7: The use of newly designed professional bearings, and reach a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.

A8: Installation and maintenance easy, open the door to cover clean-up.

A9).Milling process of the whole seal, without dust leakage.

A10: Full automatic feeding, the materials and sorting.

A11: Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (10-120 mesh).

A12: The host used the water and wind double system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.

440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control 1
440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control 2
440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control 3
440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control 4
440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control 5
440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control 6
440V 500kg Per Hour PE Pulverizer Machine With ABB Inverter Control 7
Disc-type
Item Model
MF400
MF500
MF600
MF800
Diameter
400mm
500mm
600mm
800mm
Motor power
30kw
45kw
55kw
75kw
Blade material
SKD-11 or D53
SKD-11 or D53
SKD-11 or D53
SKD-11 or D53
Capacity
100kg/h
200kg/h
250kg/h
350kg/h





Rotator-type
Item Model
SMF400
SMF500
SMF600
SMF800
Rotary blade
18
24
28
40
Fixed blade
10
12
15
20
Motor power
30kw
45kw
55kw
75kw
Capacity
100-150kg/h
150-250kg/h
250-350kg/h
450-500kg/h
