8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine

8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine
8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine
video play

Large Image :  8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine

Product Details:
Place of Origin: CN
Brand Name: BEISU
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $15,000.00
Packaging Details: Film packing or wood package as customer requirements
Supply Ability: 200 Set/Sets per Year for plastic pulverizer machine
Detailed Product Description
Output (kg/h): 100 - 500 Kg/h Feeding Size (mm): 8 - 10 Mm
Output Size (mesh): 20 - 80 Mesh Power (kW): 45
Range Of Spindle Speed(r.p.m): 2900 - 3700 R.p.m Voltage: 220V/380V/415V/440V
Dimension(L*W*H): 2000mm*2800mm*3200mm Weight (KG): 2000 KG
Raw Material: PVC/WPC/PE/LDPE/LLDPE/PET/ABS/EVA/TPE/HDPE Motor Power: 45Kw
Material Blade: SKD-11 Or Stainless Steel Or Tungsten Steel Blade Type: Disc
Off Fan Blower Motor Power: 0.75Kw Fan Blower Motor Power: 7.5Kw
Bearing Brand: NSK Or SKF Or Wafandian OIL Filling System: Oil Pump
Dust Collection Type: Bag Contactor Brand: SIEMENS
Port: SHANGHAI Or NINGBO PORT
High Light:

2900rpm Pe Pulverizer

,

Ss Disc Blade Pe Pulverizer

,

8.0mm Pe Pulverizer

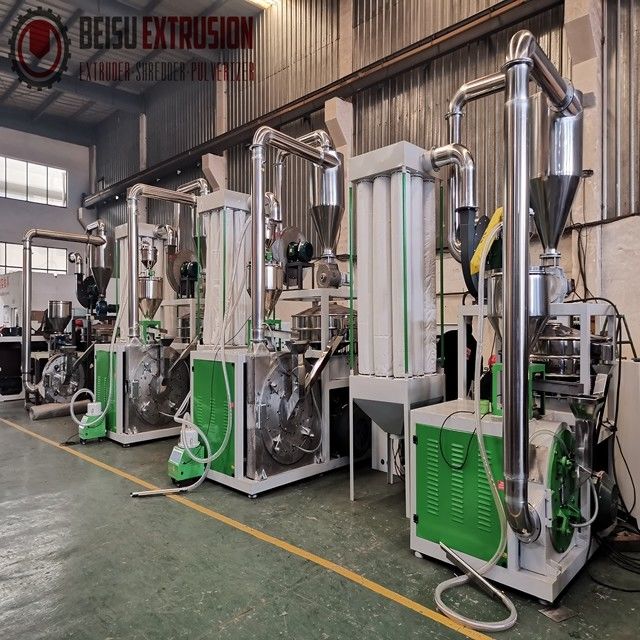

8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine 0
Application of PE pulverizer machine:
The Brand-new Mf series plastic pulverizer belongs to the disc-type pulverizer series, which disc diameter from 350mm to 800mm.This pulverizer is high speed, precision grinders for the processing of medium hard, impact resistant and friable materials, for example PE, PVC, PP, ABS, PA, EVA, PET, PS, PPS, EPS, PC, Foam, Cow leaterh and so on.

Advantages
of PE pulverizer machine:
--Save and simple adjustment of cutting gap
--Low drive power and high throughput
--Innovative efficient design Easy to maintain and control
--Wide range of accessories
--Automatically regrinding coarse powder dual cooling system

Application
of PE pulverizer machine:
One of the main of use of Sevenstars MF series plastic pulverizer is the pulverization of PE for rotomolding applications. In this process, a screening machine is necessary to ensure the right output size, other applications are the working in the line with a shredder and crusher to have a balance and efficient system to hadle in house production waste.with a shredder and crusher to have a balance and efficient system to hadle in house production waste.

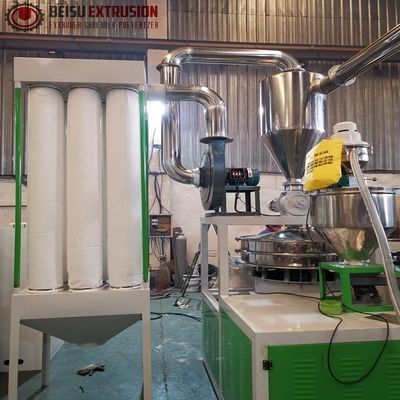

8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine 1

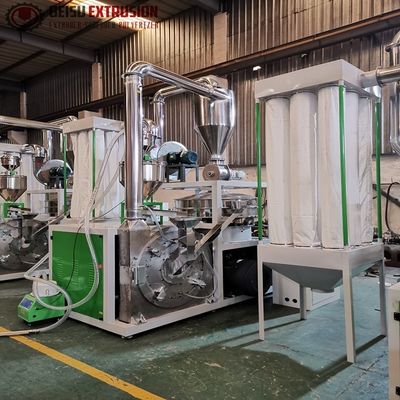

8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine 2

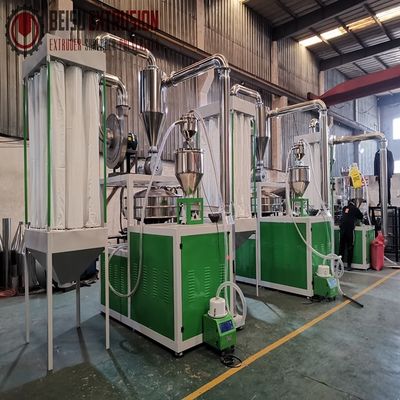

8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine 3
8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine 4
8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine 5
8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine 6
8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine 7
8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine 8
8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine 9
8.0mm 2900rpm Ss Disc Blade Pe Pulverizer Machine 10
Model
MF-400
MF-610
MF-800
Blade disc size
400mm
610mm
800mm
Blade Disc quantity
2 pieces
2 pieces
2 pieces
Shaft rotary speed
4500 rpm
4200 rpm
3700 rpm
Main motor power
30kw
45kw
55kw
Blower power
3kw
5.5kw
7.5kw
Flow valve power
0.75kw
0.75kw
1.1kw
Powder size
10-100mesh
10-100 mesh
10-100 mesh
Cooling method
Air cooling & water cooling
Air cooling & water cooling
Air cooling & water cooling
Capacity
150kg/h (PE)
80kg/h (PP)
20kg/h (PE)
250kg/h (PE)
160kg/h (PP)
350kg/h (PE)
350-400kg/h (PE)
200-250kg/h (PP)
500kg/h (PE)
Machine size
2500*2000*3000mm
2800*2300*3000mm
3200*2800*3200mm
