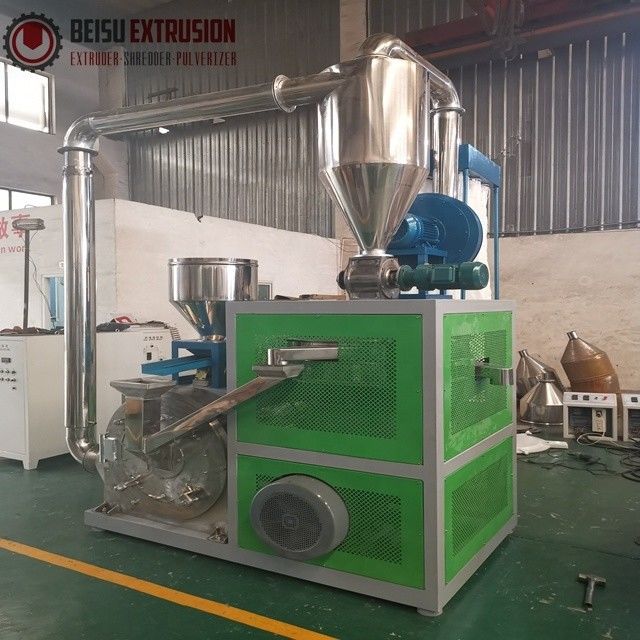

500kg/H 10mm LDPE LLDPE Pe Pulverizer With Disc Blade

500kg/H 10mm LDPE LLDPE Pe Pulverizer With Disc Blade
500kg/H 10mm LDPE LLDPE Pe Pulverizer With Disc Blade
video play

Large Image :  500kg/H 10mm LDPE LLDPE Pe Pulverizer With Disc Blade

Product Details:
Place of Origin: CN
Brand Name: BEISU
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $15,000.00
Packaging Details: Film packing or wood package as customer requirements
Supply Ability: 200 Set/Sets per Year for plastic pulverizer machine
Detailed Product Description
Output (kg/h): 100 - 500kg/h Feeding Size (mm): 8 - 10mm
Output Size (mesh): 20 - 80 Mesh Power (kW): 45
Range Of Spindle Speed(r.p.m): 2900 - 3700 R.p.m Type: Pulverizer
Voltage: 220V/380V/415V/440V Dimension(L*W*H): 2000mm*2800mm*3200mm
Weight (KG): 2000 KG Motor Power: 45Kw
Material Blade: SKD-11 Or Stainless Steel Or Tungsten Steel Blade Type: Disc
Off Fan Blower Motor Power: 0.75Kw Fan Blower Motor Power: 7.5Kw
Bearing Brand: NSK Or SKF Or Wafandian OIL Filling System: Oil Pump
Dust Collection Type: Bag Contactor Brand: SIEMENS
Port: SHANGHAI Or NINGBO PORT
High Light:

Disc Blade pe pulverizer

,

500kg/h pe pulverizer

,

10mm pe pulverizer


500kg/H 10mm LDPE LLDPE Pe Pulverizer With Disc Blade 0
Application of PE/LDPE Pulverizer mill:

This machine can be used for powder processing of polyethlene (PE), polyvinylchloride (PVC), polypropylene (PP), polystyrene (PS), ABS,nylon and other materials.



Features of PE/LDPE Pulverizer mill:

A1:The new disc design is used ,high-yield,strong resistance and the life of grinding disc is double the ordinary.
A2:The use of newly designed professional bearings ,and reached a high rotation rate ,at the same time using only one drive motor ,to ensure the efficient grinding crash,which greatly saves the time and operation of machinery and control engineering.
A3:Installation and maintenance easy, open the door to cover clean-up.
A4:Milling process of the whole seal,without dust leakage.
A5:Full automated ,automatic feeding ,the materials and sorting.
A6:Grinding gap adjustment is simple ,just use the plug-foot bolts and adjustments can be fine-tuning.
A7:The host used the water and wind double cooling systerm, rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface.material entered the grinding chamberas soon as caught, groud,and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.

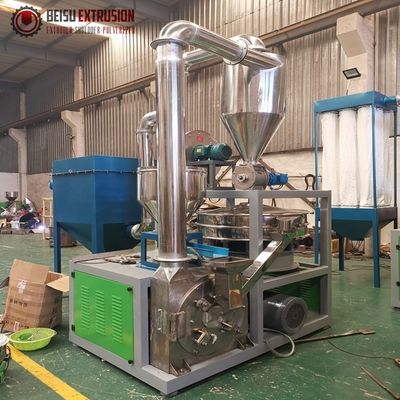

500kg/H 10mm LDPE LLDPE Pe Pulverizer With Disc Blade 1

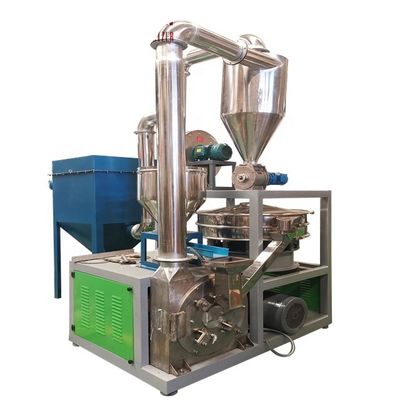

500kg/H 10mm LDPE LLDPE Pe Pulverizer With Disc Blade 2

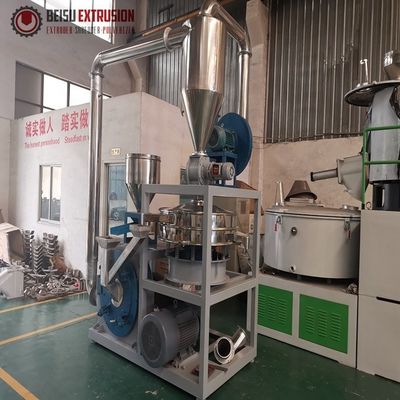

500kg/H 10mm LDPE LLDPE Pe Pulverizer With Disc Blade 3

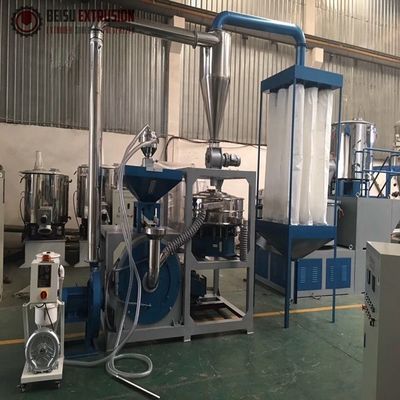

500kg/H 10mm LDPE LLDPE Pe Pulverizer With Disc Blade 4
500kg/H 10mm LDPE LLDPE Pe Pulverizer With Disc Blade 5
500kg/H 10mm LDPE LLDPE Pe Pulverizer With Disc Blade 6
Model
MF-400
MF-500
MF-600
MF-800
Diamete (mm)
φ400
φ500
φ600
φ800
Motor Power (kw)
22
37
55
75
Weight (kg)
1580
2280
2680
3280
Dimensions (mm)
2800x2600x3700
3000x2800x3900
3200x3000x4200
4000x3500x4500
Capacity
50-150
120-280
160-480
280-880



Type 1:

Disc type for PE PET material
Disc type grinder can better process the raw materials, the powder obtained is more uniform and the particle size is finer, we use the disc type pulverizer to process those materials that are easy to grind.


Type 2:

Disc type for PP EVA, soft PVC When milling the material ,the temperature of cavity is very high, for PP,EVA and soft PVC, it is easy to melt when progress, so we increase the centrifugal fan to reduce the residence time of the material in the cavity.
