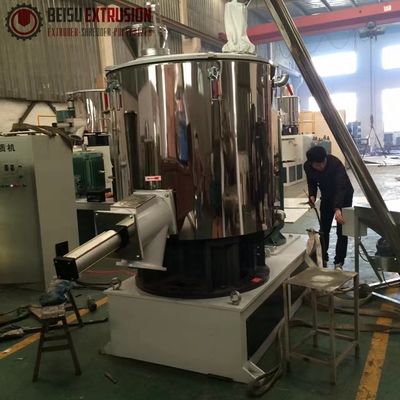

800L High Speed Heating 1800kg/H Mixer Blade

800L High Speed Heating 1800kg/H Mixer Blade
800L High Speed Heating 1800kg/H Mixer Blade 800L High Speed Heating 1800kg/H Mixer Blade 800L High Speed Heating 1800kg/H Mixer Blade 800L High Speed Heating 1800kg/H Mixer Blade 800L High Speed Heating 1800kg/H Mixer Blade 800L High Speed Heating 1800kg/H Mixer Blade

Large Image :  800L High Speed Heating 1800kg/H Mixer Blade

Product Details:
Place of Origin: CN;JIA
Brand Name: BEISU
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 4 Sets
Price: $800.00
Packaging Details: Plastic film packing or wood package as customer requirements
Supply Ability: 150 Set/Sets per Year for PVC mixer
Contact Now
Detailed Product Description
Condition: New Material: Stainless Steel
Output (kg/h): 1600 - 1800kg/h Capacity (kg): 280-320
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Pump, Pump, Pump, Pump, Pump, Pump, Pump Application: Plastic Mixer
Automatic Grade: Automatic Voltage: Customzied
Dimension(L*W*H): Customized Warranty: 1 Year
After-sales Service Provided: Video Technical Support, Video Technical Support, Video Technical Support, Video Technical Support, Video Technical Support Weight (KG): 3200 KG
Power (kW): 132 Applicable Industries: Food & Beverage Factory, Food & Beverage Factory
After Warranty Service: Field Maintenance And Repair Service, Field Maintenance And Repair Service, Field Maintenance And Repair Service, Field Maintenance And Repair Service Local Service Location: Algeria, Algeria, Algeria
Showroom Location: None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None Raw Material: Powder
Mixing Speed: 660 RPM Material Of Mixing Blade: S.S304
Method Of Mixing Blade: Three Propellers Hot Mixing Motor Power: 132Kw
Mixing Bearing Brand: NSK, SKF Or WANFANDIAN Cold Mixing Drive Method: Belt Reducer
Temperature Brand: OMRON,JAPAN Contactor Brand: SCHNEIDER Or SIEMENS
Port: SHANGHAI Or NINGBO PORT
High Light:

800L mixer blade

,

1800kg/h mixer blade

,

800l heating mixer blade

800L High Speed Heating 1800kg/H Mixer Blade 0
800L High Speed Heating 1800kg/H Mixer Blade 1
Application of high-speed mixer: The high-speed and high-efficiency mixer and automatic weighing and oil mixing system manufactured by BEISU Machinery are particularly suitable for efficient and uniform mixing of solid-liquid, solid-powder, powder-powder, and powder-liquid. Products are widely used in fine chemicals, feed, electronics, food, hard materials, ceramic materials, biology, medicine, non-metallic mining, building materials, coatings, dyes, fertilizers and metal powders for better mixing. Shear sensitive crystalline powder, batch product mixing, mixing liquid into solid.

The working principle of the high-speed mixer: The motor directly drives the main shaft to rotate through the belt wheel and the reduction box. The rotating blades with special shapes installed on the main shaft rotate accordingly. Under the action of centrifugal force, the material rises along the tapered wall of the fixed mixing tank and is in a state of reversing motion. , Forming a kind of swirling motion, for materials of different densities, it is easy to mix uniformly in a short time, and the mixing efficiency is more than twice that of ordinary mixers.
800L High Speed Heating 1800kg/H Mixer Blade 2
800L High Speed Heating 1800kg/H Mixer Blade 3
800L High Speed Heating 1800kg/H Mixer Blade 4
800L High Speed Heating 1800kg/H Mixer Blade 5
800L High Speed Heating 1800kg/H Mixer Blade 6
800L High Speed Heating 1800kg/H Mixer Blade 7
800L High Speed Heating 1800kg/H Mixer Blade 8
800L High Speed Heating 1800kg/H Mixer Blade 9
800L High Speed Heating 1800kg/H Mixer Blade 10
800L High Speed Heating 1800kg/H Mixer Blade 11
800L High Speed Heating 1800kg/H Mixer Blade 12
Vertical type High speed mixer:
Model
Total volume
Available capacity
Motor power
Shaft speed
Heating method
SHR-5A
5L
3L
1.1Kw
1400rpm
Self friction/electric
SHR-10A
10L
7L
3Kw
2000rpm

SHR-25A
25L
20L
5.5Kw
1440rpm

SHR-50A
50L
35L
7/11Kw
750/1500rpm

SHR-100A
100L
75L
14/22Kw
650/1300rpm

SHR-200A
200L
150L
30/42Kw
475/950rpm

SHR-300A
300L
225L
40/55Kw
475/950rpm

SHR-500A
500L
375L
47/67Kw
430/860rpm

SHR-800A
800L
600L
60/90Kw
370/740rpm

Vertical type High speed mixer:
Model
SRL-Z100/200
SRL-Z200/500
SRL-Z300/600
SRL-Z500/1000
SRL-Z800/1600
Total volume
100/200
200/500
300/600
500/1000
800/1600
Effective volume
75/160
150/320
225/400
375/650
600/1050
Shaft speed
650/130/180
475/950/130
475/950/60
430/860/60
370/740/50
Heat method
Self friction/electric




Heat method
Water




Mixing time
6-10
6-10
6-10
6-10
8-12
Motor power
14/22/7.5
30/42/7.5
40/55/11
55/75/11
110/30
Horizontal type High speed mixer:
Model
SRL-W500/1600
SRL-W800/2000
SRL-W800/2500
SRL-W800*2/4000
Total volume
500/1600
800/2000
800/2500
1600/4000
Effective volume
330/1000
560/1400
600/1500
1120/2700
Shaft speed
430/860/70
330/660/55
330/660/60
350/700/65
Heat method
Self friction/electric



Heat method
Water



Mixing time
8-12
8-12
8-12
8-12
Motor power
55/75/22
86/110/22
86/110/22
110*2
800L High Speed Heating 1800kg/H Mixer Blade 14
800L High Speed Heating 1800kg/H Mixer Blade 15
800L High Speed Heating 1800kg/H Mixer Blade 16
800L High Speed Heating 1800kg/H Mixer Blade 17
800L High Speed Heating 1800kg/H Mixer Blade 18
800L High Speed Heating 1800kg/H Mixer Blade 19
