CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife

CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife
CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife

Large Image :  CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-500-600-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic bags or wooden case package
Delivery Time: 5 working days
Payment Terms: L/C, , D/P, T/T, Western Union
Supply Ability: 50000 set per year
Detailed Product Description
Model Number: SMF400,500,600,800 Plastic Type: PVC/PC
Fineness: 30~80mesh Blade Material: 9CrSi , Cr12 , SKD-11, D2
Quantity Of Fixed Blade: 12/16/24 Quantity Of Rotary Blade: 24/26/40
Lift Time: 2-3 Years
High Light:

PVC Pulverizer Machine Blade

,

PVC pulverizer blade

,

CE Pulverizer Machine Blade



Application of PVC pulverizer baldes: The high-speed and high-efficiency pulverizer manufactured by Beisu Machinery is especially suitable for TPU, LLDPE, PVC, PE, PET, EVA, PP, PA, rubber, and various rigid, soft, elastomer, low-temperature materials, and film materials. , Sheet thermoplastic materials. According to the classification of the grinding materials, the mills are mainly divided into two categories: rotor (turbine) mills and disc mills.


The working principle of PVC pulverizer baldes: The high-speed rotation of the grinding disc driven by the main shaft of the plastic pulverizer collides with the fixed cutter disc, cutting the material into powder (without sieve). The ground fine powder is brought into the vibrating screen along with the circulating air of the blower for sorting. The coarse material falls back to regrind, and the qualified fine powder enters the finished product storage with the cyclone and is discharged through the powder outlet pipe. That is the finished product. The air is discharged from the dust collector.

Details application for PVC pulverizer baldes:
A1. Material: D2,SKD11,HSS,9CRSI,T10...
A2. Hardness: HRC56-60 according to customers request.
A3. Triple tempt for optimum wear resistance.
A4. Precise heat treatment.
A5. Excellent cutting longevity and wear resistance.
A6. High intensity,high toughness,small thermal deformation.
A7. Blades are eliminated unwanted and uncontrollable residual stress.

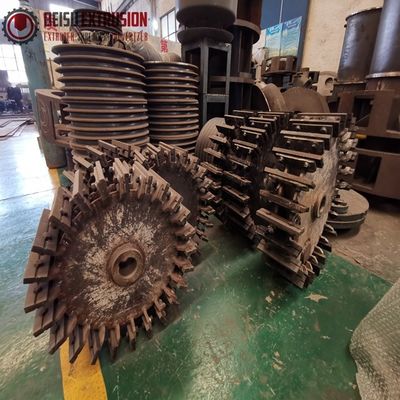

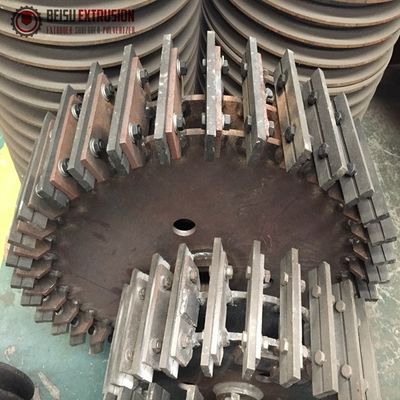

Pictures for PVC pulverizer baldes:

CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife 0

CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife 1

CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife 2

CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife 3

CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife 4

CE PVC Pulverizer Machine Blade With Rotary And Fixed Knife 5



Technical data for PVC Pulverizer blade:
Model
MF400
MF500
MF600
MF800
Rotary blade QTY
18
24
26
40
Fixed blade QTY
10
12
15
20
Main motor power
30kw
45kw
55kw
75kw
Blade material
high chromium alloy
high chromium alloy
high chromium alloy
high chromium alloy
Capacity
100-150kg/h
250kg/h
350kg/h
500kg/h



Main futures for PVC pulverizer baldes:

A1) Increased blade durablity and reduced retooling time.
A2) Higher precision available,anti vibration and small thermal deformation.
A3) Excellent cutting quality,stable and reliable cutting performance.
A4) Assuring you the maximum performance and the best maintenance of all knives.
A5) Right features of hardness, toughness, wear resistance for the right function.
