SMF-800 Plastic PVC Grinding Rotary Fixed Pulverizer Blade

SMF-800 Plastic PVC Grinding Rotary Fixed Pulverizer Blade
SMF-800 Plastic PVC Grinding Rotary Fixed Pulverizer Blade
video play

Large Image :  SMF-800 Plastic PVC Grinding Rotary Fixed Pulverizer Blade

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-500-600-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic bags or wooden case package
Delivery Time: 5 working days
Payment Terms: L/C, , D/P, T/T, Western Union
Supply Ability: 50000 set per year
Contact Now
Detailed Product Description
Model Number: SMF400,500,600,800 Plastic Type: PVC/PC
Fineness: 30~80mesh Blade Material: 9CrSi , Cr12 , SKD-11, D2
Quantity Of Fixed Blade: 12/16/24 Quantity Of Rotary Blade: 24/26/40
Lift Time: 2-3 Years
High Light:

Fixed pulverizer blade

,

Rotary pulverizer blade

,

pulverizer fixed blade

Application of PVC pulverizer baldes: The high-speed and high-efficiency pulverizer manufactured by Beisu Machinery is especially suitable for TPU, LLDPE, PVC, PE, PET, EVA, PP, PA, rubber, and various rigid, soft, elastomer, low-temperature materials, and film materials. , Sheet thermoplastic materials. According to the classification of the grinding materials, the mills are mainly divided into two categories: rotor (turbine) mills and disc mills.


The working principle of PVC pulverizer baldes: The high-speed rotation of the grinding disc driven by the main shaft of the plastic pulverizer collides with the fixed cutter disc, cutting the material into powder (without sieve). The ground fine powder is brought into the vibrating screen along with the circulating air of the blower for sorting. The coarse material falls back to regrind, and the qualified fine powder enters the finished product storage with the cyclone and is discharged through the powder outlet pipe. That is the finished product. The air is discharged from the dust collector.

Details application for PVC pulverizer baldes:
A1. Material: D2,SKD11,HSS,9CRSI,T10...
A2. Hardness: HRC56-60 according to customers request.
A3. Triple tempt for optimum wear resistance.
A4. Precise heat treatment.
A5. Excellent cutting longevity and wear resistance.
A6. High intensity,high toughness,small thermal deformation.
A7. Blades are eliminated unwanted and uncontrollable residual stress.


Features for PVC pulverizer blades:

A1. The new disc design is used ,high-yield,strong resistance and the life of grinding disc is double the ordinary.
A2. The use of newly designed professional bearings ,and reached a high rotation rate ,at the same time using only one drive motor ,to ensure the efficient grinding crash,which greatly saves the time and operation of machinery and control engineering.
A3. Installation and maintenance easy, open the door to cover clean-up.
A4. Milling process of the whole seal,without dust leakage.
A5. Full automated ,automatic feeding ,the materials and sorting.
A6. Grinding gap adjustment is simple ,just use the plug-foot bolts and adjustments can be fine-tuning.
A7. The host used the water and wind double cooling systerm, rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface.material entered the grinding chamberas soon as caught, groud,and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.

Pictures for PVC pulverizer baldes:

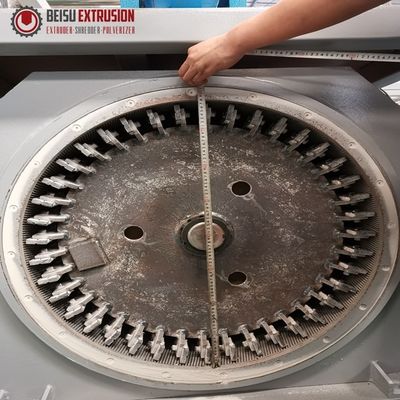

SMF-800 Plastic PVC Grinding Rotary Fixed Pulverizer Blade 0

SMF-800 Plastic PVC Grinding Rotary Fixed Pulverizer Blade 1

SMF-800 Plastic PVC Grinding Rotary Fixed Pulverizer Blade 2

SMF-800 Plastic PVC Grinding Rotary Fixed Pulverizer Blade 3

SMF-800 Plastic PVC Grinding Rotary Fixed Pulverizer Blade 4

SMF-800 Plastic PVC Grinding Rotary Fixed Pulverizer Blade 5



Technical data for PVC Pulverizer blade:

Model SMF400 SMF500 SMF600 SMF800
Rotary blade QTY 18 24 26 40
Fixed blade QTY 10 12 15 20
Main motor power 30kw 45kw 55kw 75kw
Blade material high chromium alloy high chromium alloy high chromium alloy high chromium alloy
Capacity 100-150kg/h 250kg/h 350kg/h 500kg/h



Pre-sale services:



Based on the clients' request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients.



Sale services:



Our experienced technicians are available on the phone also the Internet, clients can get instance guidance by telephone, email, online service anytime and anywhere.



After-sale services:



Normally, the equipment warranty is 12 months since installation. To establish long term cooperation, we will regularly call and email our clients to check the equipment working condition and offer suggestions for maintenance.
