Lab Equipment 10kg 5.5kw SS304 Plastic Mixer Machine

Certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

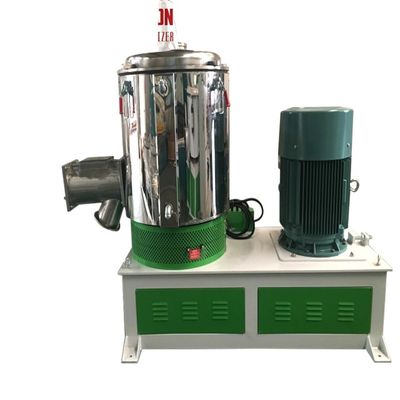

Lab Equipment 10kg 5.5kw SS304 Plastic Mixer Machine

Lab Equipment 10kg 5.5kw SS304 Plastic Mixer Machine
Lab Equipment 10kg 5.5kw SS304 Plastic Mixer Machine
video play

Large Image :  Lab Equipment 10kg 5.5kw SS304 Plastic Mixer Machine

Product Details:
Place of Origin: CN;JIA
Brand Name: BEISU
Certification: CE ISO
Model Number: BEISU-10/25/50
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 2 Sets
Price: $3,000.00
Packaging Details: Plastic film packing or wood package as customer requirements
Supply Ability: 250 Set/Sets per Year for PVC mixer
Detailed Product Description
Condition: New Capacity (kg): 10
Weight (KG): 300 KG Power (kW): 5.5
Material Of Mixing Blade: SS304 Method Of Mixing Blade: Double Propellers
Hot Mixing Motor Power: 7.5Kw Mixing Bearing Brand: NSK, SKF Or WANFANDIAN
Cold Mixing Drive Method: Belt Reducer Temperature Brand: OMRON,JAPAN
Contactor Brand: SCHNEIDER Or SIEMENS Port: SHANGHAI Or NINGBO PORT
High Light:

SS304 Plastic Mixer Machine

,

10kg Plastic Mixer Machine

,

5.5kw Plastic Mixer Machine



Application of lab mixer equipment: The high-speed and high-efficiency mixer and automatic weighing and oil mixing system manufactured by BEISU Machinery are particularly suitable for efficient and uniform mixing of solid-liquid, solid-powder, powder-powder, and powder-liquid. Products are widely used in fine chemicals, feed, electronics, food, hard materials, ceramic materials, biology, medicine, non-metallic mining, building materials, coatings, dyes, fertilizers and metal powders for better mixing. Shear sensitive crystalline powder, batch product mixing, mixing liquid into solid.



Process Flow of lab mixer equipment:

a. Water,oil and others ,heated and mixed in Liquid Pot and Oil Pot.
b. Materials ,Sucked into emulsifying pot by vacuum system
c. Stirred by both the center blade and side scraper. Then cut off in cut-off mixing unit,all in the Emulsifying Pot.
d. The materials are finally crushed into small pellets of 200um~2um.
e. The finished product , pumed out from Discharge System



Pictures of lab mixer equipment:

Lab Equipment 10kg 5.5kw SS304 Plastic Mixer Machine 0

Lab Equipment 10kg 5.5kw SS304 Plastic Mixer Machine 1



Lab Equipment 10kg 5.5kw SS304 Plastic Mixer Machine 2

Lab Equipment 10kg 5.5kw SS304 Plastic Mixer Machine 3

Lab Equipment 10kg 5.5kw SS304 Plastic Mixer Machine 4

Lab Equipment 10kg 5.5kw SS304 Plastic Mixer Machine 5



Technical data of high speed lab mixer:

Model Volume (L) Effective Volume (L) Motor Power (KW) Spindle Speed Heating Method Discharge
Mode
SHR-5A 5 3 2.2 2000 Self-friction Manual
SHR-10A 10 7 3 2000
SHR-50A 50 35 7/11 750/1500 Electric heating and the self-friction Automatic
SHR-100A 100 75 14/22 650/1300
SHR-200A 200 150 30/42 475/950
SHR-300A 300 225 40/50 475/950
SHR-500A 500 375 47/67 430/860
SHR-800A 800 600 60/90 370/740
SHR-200C 200 150 30/42 650/1300 Self-friction Automatic
SHR-300C 300 225 47/67 475/950
SHR-500C 500 375 83/110 500/1000



Vertical type High speed mixer:

Model SRL-Z100/200 SRL-Z200/500 SRL-Z300/600 SRL-Z500/1000 SRL-Z800/1600
Total volume 100/200 200/500 300/600 500/1000 800/1600
Effective volume 75/160 150/320 225/400 375/650 600/1050
Shaft speed 650/130/180 475/950/130 475/950/60 430/860/60 370/740/50
Heat method Self friction/electric
Heat method Water
Mixing time 6-10 6-10 6-10 6-10 8-12
Motor power 14/22/7.5 30/42/7.5 40/55/11 55/75/11 110/30



Horizontal type High speed mixer:

Model SRL-W500/1600 SRL-W800/2000 SRL-W800/2500 SRL-W800*2/4000
Total volume 500/1600 800/2000 800/2500 1600/4000
Effective volume 330/1000 560/1400 600/1500 1120/2700
Shaft speed 430/860/70 330/660/55 330/660/60 350/700/65
Heat method Self friction/electric
Heat method Water
Mixing time 8-12 8-12 8-12 8-12
Motor power 55/75/22 86/110/22 86/110/22 110*2/30



Warranty of high speed lab mixer:

A1. We not only provide machines but also offer technical guide and market evaluate.
A2. We will provide all the machines for the complete production according to customer's requirements.
A3. We will provide complete service for factory layout and other information to help customer to build the factory.
A4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
A5. Except one year quality guarantee, we will provide after-sell service for all the life.
A6. For long-term cooperation, we always provide good quality, good price and good service to customer.
