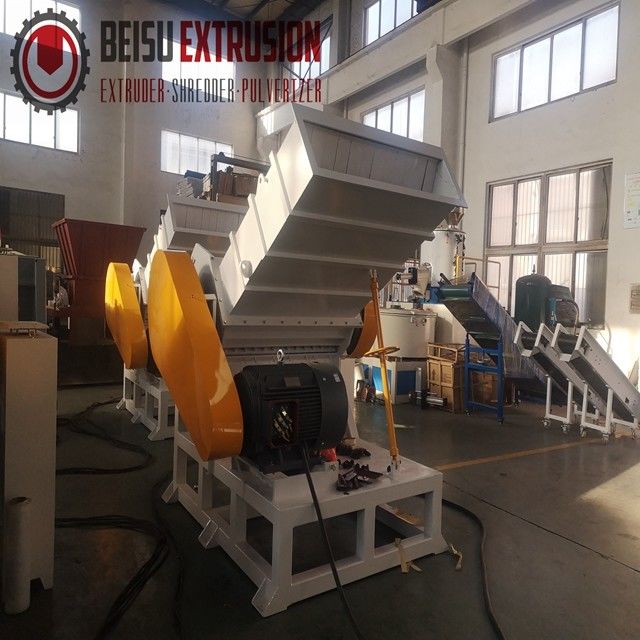

SWP-1200 Grinder Crusher Plastic Auxiliary Machine With SKD-11 Blade

SWP-1200 Grinder Crusher Plastic Auxiliary Machine With SKD-11 Blade
SWP-1200 Grinder Crusher Plastic Auxiliary Machine With SKD-11 Blade
video play

Large Image :  SWP-1200 Grinder Crusher Plastic Auxiliary Machine With SKD-11 Blade

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-PC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 35 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 20 Set per month
Detailed Product Description
Material: PVC/PE/PET/PP/PC/ABS/PS Shaft Design: Single
Power: 30HP Blades Material: 9CrSi/D2/SKD-11
Screen Mesh: 8-20mm Or Customized Capacity: 50-450Kg/h
High Light:

SKD-11 Blade grinder crusher machine

,

CE grinder crusher machine

,

grinder crusher machine 30HP

SWP-1200 Plastic PVC SPC WPC board crusher grinding machine with SKD-11 blade





Application:
This crusher is special design for crushing all kinds of relatively long plastic special shaped materials, such as PVC PE PP hard plastic pipes, pipe fittings,plastic door & window,sheet and etc.

* Suitable for crushing and recycling tray, pipe and wide cut sectional material, which avoids products predecomposition process and reduces material degradation when using normal crusher machine. Save labour, cut down labour strength and increase crushing and recycling efficiency; * Using V-shape knife or flat knife, which are wide use; cutting in scissor method, less energy consumption and less shear heat, high cutting efficiency and granule size evenly;

* The rotor is passed strict static and dynamic equilibrium which ensure the smooth and steady operating of the machine.

Special Features:
A1.With unique"Claw type" designed blade base,blades material can be customized according to customer requirements.
A2.Easy to operate and simple in replacement of cutter blades.
A3.Cutter blades are resistant to wear and tear.
A4.Removable screen mesh is easy to install or disassemble for cleaning and changing colors.
A5.Motor with overload protection device.
A6.Using electrical control security design to ensure the safety of your personnels.
A7.Standard voltage is 380V 50Hz 3Phase.(Can be customized according to customers'request)
A8.Good adaptability and long service life.
A9.Noise reduction insulation for machine body or outside sound insulation room is available by optional order.



Crushing material example:

SWP-400 powerful crusher can crush PVC pipe and corrugated pipe with diameter less than 160mm, PE pipe with diameter less than 100, wire trough, sheet, decoration board. Larger diameter plastic pipes are easily broken after cutting.
SWP-500 powerful crusher and heavy crusher can crush PVC pipes below 250mm in diameter, PE pipes under 160mm in diameter, PP pipes under 110 diameter, PPR pipes and other plastic pipes and profiles.
SWP-600 powerful crusher and heavy crusher can crush plastic pipes below 315mm in diameter. It can also be broken after larger diameter and thicker pipes are cut in sections. For thicker plates, bars, car bumpers, Large injection molded parts can also be broken.
For larger and larger calibers (such as below 800mm and below 1200mm), there are crushing solutions. You have any broken demand, welcome to call us!



Details of PVC grinding machine:

SWP-1200 Grinder Crusher Plastic Auxiliary Machine With SKD-11 Blade 0

SWP-1200 Grinder Crusher Plastic Auxiliary Machine With SKD-11 Blade 1

SWP-1200 Grinder Crusher Plastic Auxiliary Machine With SKD-11 Blade 2

SWP-1200 Grinder Crusher Plastic Auxiliary Machine With SKD-11 Blade 3

SWP-1200 Grinder Crusher Plastic Auxiliary Machine With SKD-11 Blade 4

SWP-1200 Grinder Crusher Plastic Auxiliary Machine With SKD-11 Blade 5



Technical characteristics of Plastic PVC crusher:

- Specially designed feeding gate, increase the feeding quantity;

- V shape and multistep blades structure design will increase different plastic crushing capacity

- SKD-II blades material will offer long working period for the customer

- More thicker crushing chamber wall will lead to low noise

- Inverter AC motor and heavy duty bearings will bring the crusher more long working period

- Every moving or rotating part of the crusher all with safety devices to protecting the operators’ safety



Technical date:

Type SWP400 SWP500 SWP560 SWP630 SWP730 SWP830 SWP900 SWP1050
Knife diameter(mm) 400 500 550 630 730 880 880 880
Unmovable knife (pc) 2 2 4 4 4 4 4 4
Movable knife (pc) 5 5 10 10 10 14 14 14
S(mm) 10 12 14 14 16 18 18 18
Output ( kg/h) 250—350 450—550 550—650 700—800 900—1000 1100—1200 1100—1200 1100—1200
In size(mm) 400×300 430×500 470×500 520×550 630×700 650×700 650×700 650×700
Motor(kw) 15 22 30 37 75 90 90 110
Suction power(kw) 3 4 5.5 5.5 7.5 11 11 11
Weight(kg) 1300 1900 2400 2800 4500 6500 6500 8500
Size(mm)

2200L

900W

1800H

2200L

1050W

2100H

2300L

1200W

2250H

2400L

1300W

2300H

2600L

1500W

2700H

2700L

1580W

2800H

2700L

1580W

2800H

3000L

2100W

3800H
