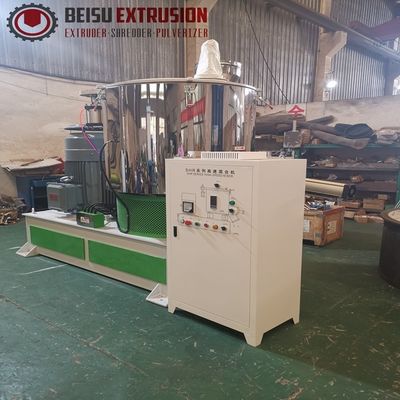

Vertical Pvc Dryer Pellets Mixer Water Cooling Type For Plastic Powder

China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

Vertical Pvc Dryer Pellets Mixer Water Cooling Type For Plastic Powder

Vertical Pvc Dryer Pellets Mixer  Water Cooling Type For Plastic Powder
Vertical Pvc Dryer Pellets Mixer  Water Cooling Type For Plastic Powder

Large Image :  Vertical Pvc Dryer Pellets Mixer Water Cooling Type For Plastic Powder

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SRL-Z500/1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 150 Sets per year
Detailed Product Description
Material: Pvc Powder With Caco3 Model: Heating Mixer,heating Cooling Mixer, Cooling Mixer
Mixer Model: BS-SRL-Z500/1000 Heating Mixermotor Power: 75Kw
Cooling Mixer Motor Power: 11Kw Inverter Brand: ABB
Certification: CE Weight: 3500kg
High Light:

Vertical Dryer Pellets Mixer


water cooling Dryer Pellets Mixer


water cooling plastic powder Mixer

500/1000 Plastic mixing machine high speed PVC powder heating cooling mixer


Features specifications:


SRL-Series heating-cooling mixing machine unit is widely used in process of mixing, drying, coloring and cooling of variously plastic powder, liquid, granules, rubber, chemicals,CaCo3, etc.


Main technical parameter:


SRL-Z Series Vertical Mixer Unit


Model SRL-Z100/200 SRL-Z200/500 SRL-Z300/600 SRL-Z500/1000 SRL-Z800/1600
Total volume 100/200 200/500 300/600 500/1000 800/1600
Effective volume 75/160 150/320 225/400 375/650 600/1050
Blade rotation speed 650/130/180 475/950/130 475/950/60 430/860/60 370/740/50
Heat-cooling method



/water cooling



/water cooling



/water cooling



/water cooling



/water cooling

Mixing time 6-10 6-10 6-10 6-10 8-12
Motor power 14/22/7.5 30/42/7.5 40/55/11 55/75/11 60/90
Size 3780*1870*2250 4580*2240*2470 4580*2240*2470 4600*3000*4050 4850*3860*6550
Weight 3200 3400 4000 5800 8700


SRL-W Series Horizontal Mixer Unit


Model SRL-W500/1600 SRL-W800/2000 SRL-W800/2500 SRL-W800*2/4000 SRL-Z1000/2500
Total volume 500/1600 800/2000 800/2500 1600/4000 1000/2500
Effective volume 330/1000 560/1400 600/1500 1120/2700 700/1750
Blade rotation speed 430/860/70 330/660/55 330/660/60 350/700/65 350/700/50



Self-friction/water cooling
Mixed time(min) 8-12 8-12 8-12 8-12 8-12
Motor power(kw) 47/67/15 60/90/18.5 83/110/22 83/110*2/45 83/110/22
Discharge method Pneumatic


Details specification pictures of Plastic mixing machine:

Vertical Pvc Dryer Pellets Mixer  Water Cooling Type For Plastic Powder 0

Vertical Pvc Dryer Pellets Mixer  Water Cooling Type For Plastic Powder 1

Vertical Pvc Dryer Pellets Mixer  Water Cooling Type For Plastic Powder 2

Vertical Pvc Dryer Pellets Mixer  Water Cooling Type For Plastic Powder 3


Pre-sale service:


1. Receive your daily calls and visits, and record your needs information in detail.


You can get in touch with us by calling the company, sending us a consultation email, sending an inquiry, faxing, talking to our service staff directly on the website or leaving a message. In general, we will be within 1 hour. Give you a reply.


2, according to your request, arrange a professional sales manager, discuss the requirements and goals of the equipment in detail, and make a preliminary budget and quotation.


3. We provide customized services for extrusion equipment. According to your requirements, we can conduct further technical discussions. Our professional technicians are responsible for evaluating or designing the entire project, correcting the corresponding parameters and data, and providing preliminary plans and budget quotes.


4. Our sales and technical personnel will confirm the parameters and price of the equipment with you and sign the equipment purchase contract.



In-sale service:


1. The production order will be dispatched promptly within one day after the contract takes effect, and the customer will be notified.

2. During the production process, the production department regularly schedules progress and quality inspections. The sales manager will report the production status of the equipment to the customer from time to time, and the customer can also ask the sales manager about the situation at any time.

3. After the equipment is completed, the sales manager will inform the customer in time to arrange the test machine inspection and delivery.



After sales service:


The complete plastic extrusion production line sold by Beisu Machinery can guide the installation, commissioning equipment and maintenance and operation personnel training for the user; and provide relevant technical requirements for equipment installation and use, process layout drawings, etc., and provide maintenance and accessories for life. The specific measures are as follows:


1. Equipment guidance installation and commissioning: assist and guide users to coordinate the layout of equipment according to the actual situation, reasonably arrange the planning of the overall installation location, assign technical personnel to guide equipment installation, auxiliary facilities production, and provide users with relevant questions and answers.


2. Operation and maintenance personnel training: The company can provide operation and maintenance personnel training according to user requirements.

A. Equipment production location training: Users can send operation and maintenance personnel to the company to study and receive training. The company's engineering and technical personnel will start with the theory of equipment structure, working principle, installation and commissioning technical requirements, operation, maintenance and repair procedures, and assemble and debug the equipment through the production site to understand the structure and performance of the equipment, and basically master the maintenance and repair. Operating procedures.

B. Installation and commissioning on-site training: When the company installs and debugs equipment for users, the user can send personnel to participate. Through the on-site guidance and training of the installation and commissioning personnel, the operation and maintenance personnel can master the essentials to meet the production requirements.


3. The warranty period of the company's products is one year. During the warranty period, the user is provided with free parts for equipment damage. Maintenance and spare parts supply will be provided for a long time at the cost price outside the warranty period, and will be delivered to the user at the fastest speed according to the user's request. Once the equipment fails, the user is unable to eliminate it. The company will dispatch personnel according to the user's request to rush to the scene as soon as possible, and promptly solve the problem for the user to resume production.

4. The company will keep pace with the times, develop and innovate, continuously research and develop new technologies and new products, and actively improve and improve the structure, performance and quality of existing products to meet the needs of users. When the product is updated and there are major improvements, the company will provide information to the user in a timely manner. According to the user's requirements, the company can provide equipment modification to meet the requirements at the cost price. The company is guaranteed by the company's credit, and will provide users with quality after-sales service in a serious and responsible manner, providing a strong guarantee for the normal production of users.


1. Delivery method: delivery by the supplier factory, simple packaging of domestic customers' films, wooden packaging of foreign customers.

2. Mode of transportation: The supplier shall charge the consignment, and the expenses shall be borne by the acquirer.

3. Payment method: The buyer must prepay 30% of the total equipment to the supplier as a deposit; 70% of the total equipment will be paid before the equipment is processed; the equipment arrives at the demanding factory after commissioning.

4, quality assurance: equipment quality warranty period is one year.

5. Related after-sales service

a) Provide on-site installation instructions

b) Responsible for on-site commissioning of equipment (users provide room and board for commissioning personnel)

c) Responsible for pre-employment operation and maintenance training for the demand side personnel

d) Long-term guarantee of spare parts supply

e) Long-term technical advisory services

6. Delivery time: After the contract is signed and the deposit of the purchaser is received, the processing and production of the equipment is completed within 30 working days and the delivery conditions are met. (The factory only needs 3-7 working days for stocking).
