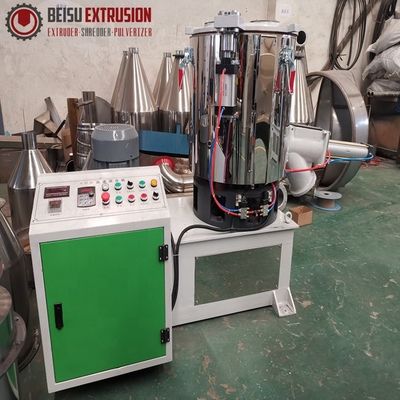

OPVC Polycarbonate Plastic Granules PVC Mixer Machine

OPVC Polycarbonate Plastic Granules  PVC Mixer Machine
OPVC Polycarbonate Plastic Granules  PVC Mixer Machine

Large Image :  OPVC Polycarbonate Plastic Granules PVC Mixer Machine

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SHR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P,, T/T, Western Union
Supply Ability: 150 Sets per year
Detailed Product Description
Material: UPVC/CPVC/OPVC/PE/PP/MB/CORBON Model: Heating Mixer,heating Cooling Mixer, Cooling Mixer
Mixer Model: SHR-500 Heating Mixermotor Power: 75Kw
Inverter Brand: ABB Temperature Control Brand: OMRON
Capacity: 720Kg/h
High Light:

polycarbonate PVC mixer machine


polycarbonate PVC mixer machine


OPVC plastic granules mixing machine

ABB Inverter control SHR-500 PVC mixer machine for pipe profile



SHR series mixers are mainly used for the mixing, mixing, coloring, drying of various resins such as polyethylene, polypropylene, polyvinyl chloride, etc., as well as the drying and devolatilization processes of engineering plastics such as ABS and polycarbonate. It can also be used for the mixing of phenolic resins.


Main structure:
The mixer consists of seven parts: frame, transmission, pot body, lifting, discharging port and electric control box. The whole machine adopts a closed structure, which is reasonable and beautiful.


A1: Transmission components:
The mixing paddle is made of stainless steel and is specially machined, wear-resistant and corrosion-resistant. Spindle: After finishing, fine grinding, quenching and tempering, work fine. Three seals are used, followed by tetrafluoroethylene, gas and skeleton oil seals, without leakage.


A2: The pot body has a multi-layer structure, which is divided into inner layer, outer layer and interlayer. The inner layer is made of stainless steel. The inner wall of the barrel and the bottom of the barrel are made of stainless steel. The bottom of the round shape is very smooth and hard. Corrosive, not easy to touch. The mixer body has a heating sleeve and a resistance heating coil, and the temperature is transmitted to the inner pot body through the high-flame point heat-conducting oil in the heating jacket, so that the pot body is heated uniformly, and the temperature of the material in the pot can be controlled by adjusting the temperature. The outer layer of the jacket has an asbestos insulation layer, and the outer layer is not hot when in use.


A3: The mixer lid is cast from aluminum alloy. The inner surface is finished with fine grinding, polishing, and fine workmanship. After it is lifted by the cylinder, it can be rotated clockwise in the vertical direction (rotation 70 °C), and the hole is filled with resin, plasticizer and stabilizer. Holes, users can arrange according to their own. Do not use too much force on the lid to prevent it from hitting the wall. In order to prevent the lid from being covered, the stirring slurry turns to cause personal accidents, and a protective switch is also provided at the lid.
A4: High-speed mixer unloading device: Made of aluminum alloy, equipped with pneumatic discharge door, automatic discharge. The cylinder and the material door are connected in one line, the pressure is reliable, and the sealing performance is good.


Details specification pictures mixer:

OPVC Polycarbonate Plastic Granules  PVC Mixer Machine 0

OPVC Polycarbonate Plastic Granules  PVC Mixer Machine 1

OPVC Polycarbonate Plastic Granules  PVC Mixer Machine 2

OPVC Polycarbonate Plastic Granules  PVC Mixer Machine 3OPVC Polycarbonate Plastic Granules  PVC Mixer Machine 4


Technical date:

Model Total volume Available capacity Motor power Shaft speed Heating method
SHR-5A 5L 3L 1.1Kw 1400rpm Self friction/electric
SHR-10A 10L 7L 3Kw 2000rpm
SHR-25A 25L 20L 5.5Kw 1440rpm
SHR-50A 50L 35L 7/11Kw 750/1500rpm
SHR-100A 100L 75L 14/22Kw 650/1300rpm
SHR-200A 200L 150L 30/42Kw 475/950rpm
SHR-300A 300L 225L 40/55Kw 475/950rpm
SHR-500A 500L 375L 47/67Kw 430/860rpm
SHR-800A 800L 600L 60/90Kw 370/740rpm
SHR-1000A 1000L 750L 83/110Kw 350/700rpm


BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.


Why choose BEISU Machinery:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool

A2:Supply of raw materials, transformers, air compressors and other procurement plans

A3:Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting

A4:Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year

A5:BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing
