Product Details:
Payment & Shipping Terms:
|
| Model NO.: | SRL-Z500/1000 | Application Area: | PVC/PE/Masterbatch/polymer/Lithium Battery |
|---|---|---|---|
| Additional Capabilities: | Milling, Drying, Coating | Motor Power: | 75Kw |
| Heating Method: | Electric Heaters | Heating Power: | 9Kw~12w |
| Mixer Blade: | 3-Layer Stainless Steel Blades | Max. Rotation Speed: | 860RPM |
| Temperature Controller: | OMRON | Inverter Brand: | Delta Or ABB |
| Highlight: | High speed Plastic resin powder mixers,PVC Plastic resin powder mixers,SPC Plastic resin powder mixers |
||
The main application fields of plastic mixers are as follows:

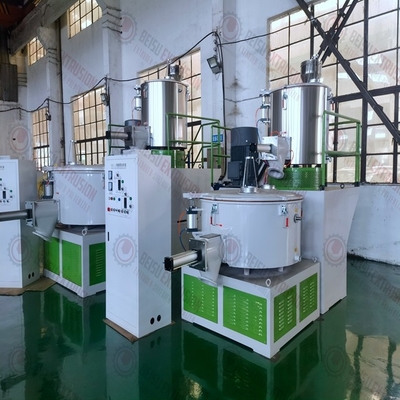

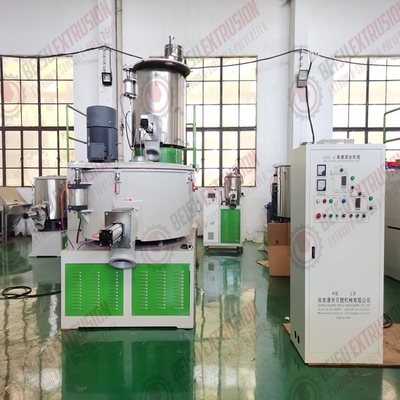

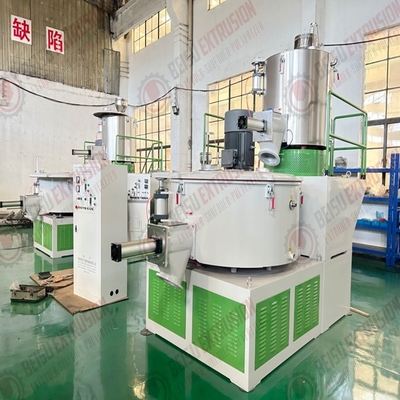

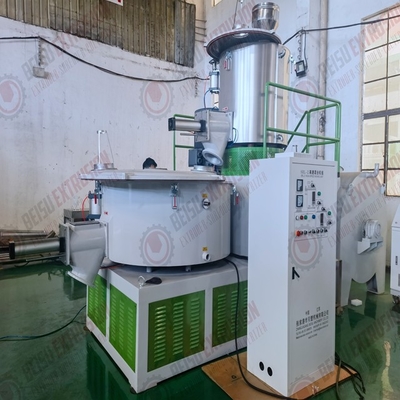

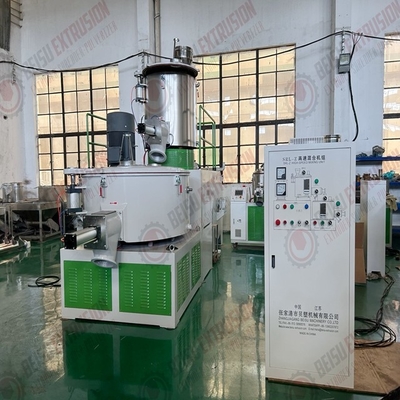

BEISU Plastic resin mixers is one of the mixing equipment mainly used for fast blending of plastic and polymer mixture composites: PVC dry blend, powder coatings, color masterbatch, pigments, thermoplastic rubbers, wood plastic composites(WPC), stone plastic composites(SPC) etc. The mixer widely used in mixing,drying,coloring for all kinds of resin such as PVC,PP,PE,CaCO3 with chemical additives.This unit is composed of one hot mixing pot and one cooling pot,the material from hot mixer will be filled into the cooling mixer automatically,so it and eliminate humidity,and protect from agglomeration.
Features for plastic mixer:
A1. The inner cylinder of the heating and cooling mixer is made of stainless steel, and the outer cylinder of the heating mixer is also made of stainless steel, which is resistant to DOP corrosion. There is a 550mm stainless steel feeding bucket above the pot cover.
A2. The heating mixer has 3-piece stirring blades, and the cooling mixer has a cantilever stirring blade.
A3. Electric stirring device: equipped with temperature measuring device and temperature control meter.
A4. The main roller adopts 88888 seal
A5. Digital display (made in Changzhou)
A6. Siemens contactor
A7. Hydraulic control system is used for opening the cover and unloading.
A8. Decompression starting device: automatic pressure relief when starting to protect the power grid.
A9. 1 standard electric control box; 1 step, 1 set of stair handrails, 1 air compressor
Technical datas for high speed plastic mixer:
|
Model Name
|
Valid Capacity(L)
|
Mixing Time(Mins)
|
Output(kg/h)
|
Motor Power(KW)
|
|
SRL-Z200/500
|
150/380
|
8-12
|
300-350
|
30/42+11& 45+11
|
|
SRL-Z300/600
|
230/480
|
8-12
|
400-500
|
40/55+11& 55+11
|
|
SRL-Z500/1000
|
375/900
|
8-12
|
600-800
|
75+18.5
|
|
SRL-W500/1000
|
375/900
|
8-12
|
600-800
|
75+18.5
|
|
SRL-W800/1600
|
600/1500
|
8-12
|
1000-1200
|
110+22
|
|
SRL-W800/2000
|
600/1800
|
8-12
|
1200-1400
|
110+22
|
|
SRL-W1000/3000
|
800/2800
|
8-12
|
1600-2000
|
160+30
|
|
SRL-W1300/3000
|
1100/2800
|
8-12
|
2000-2500
|
200+30
|
1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
1.Reliable
Most popular design with years' verification.
Mature supply chain for raw materials with strict quality assurance.
International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.
2. Economy
BEISU Stable technology commercialized in China.
High efficiency mixing performance.
Cost effective solutions.
Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
