Product Details:
Payment & Shipping Terms:
|
| Application: | UPVC/CPVC/OPVC/PE/PP/MASTERBATCH/CORBON | Model: | SRL-Z500/1000 Plastic Mixer Machine |
|---|---|---|---|
| Heating Mixermotor Power: | 75Kw | Inverter Brand: | Delta |
| Temperature Control Brand: | OMRON | Paddle Mode: | 3 Pcs |
| Discharge Material: | S.S304 | Speed: | 860rpm |
| Capacity: | 800Kg/h | ||
| Highlight: | PVC compounding powder mixing additives |
||

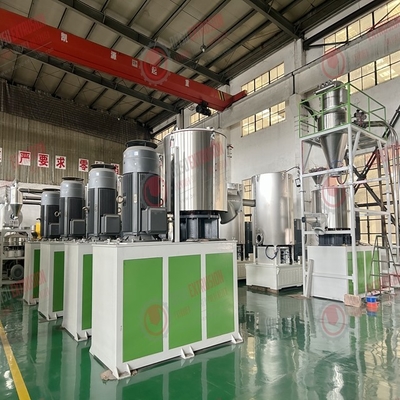

The plastic weighing and mixing system is mainly used for the transportation of PVC powder. It can use negative pressure, positive pressure (dilute phase, dense phase), metering (main material, additives), mixing, and centralized storage. According to the on-site conditions, pipe chain, negative pressure or spiral transportation can be used, and the materials are distributed to the hoppers of each machine. The whole process is centrally controlled by PLC and centrally monitored by the host computer. Including automatic batching of CPE, stabilizer, ACR (and other additives), vacuum loading of PVC and Caco3, all raw materials are mixed according to the set formula.
The plastic weighing and mixing system adopts fully automatic PLC screen touch operation, free switching between English and local languages, clear regional function division, and very convenient operation.

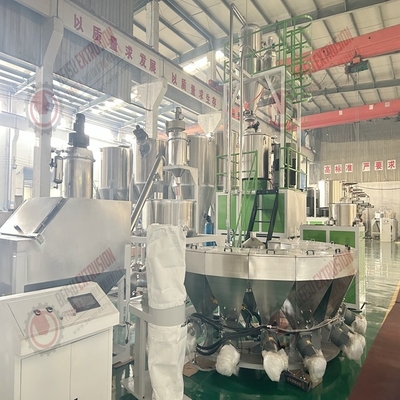

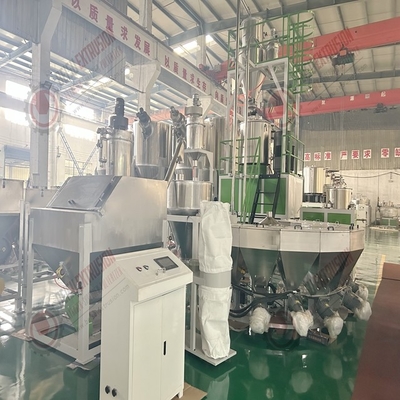

Automatic batching part
PVC powder + Caco3 + CPE + foaming agent + stabilizer, etc. are mixed through the PLC control system
Additive plastic raw materials are automatically weighed by electronic scale sensors
Advantages: • Anti-bridging device prevents raw materials from sticking to the material wall
• The filter absorbs the powder and finally pours the material into the material
• Automatic induction weighing until all additives are delivered together into a batch, and the weight control is controlled by the Siemens control system
Vacuum feeding system
Vacuum feeding PVC powder and Caco3 stations, and the additive raw materials enter the heating and mixing part after weighing

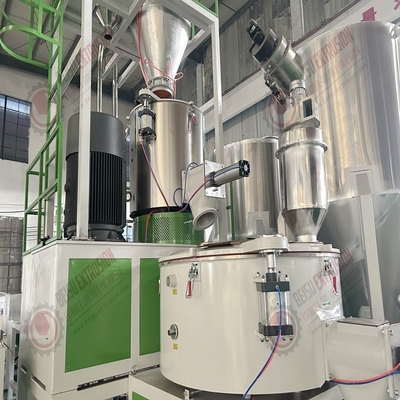

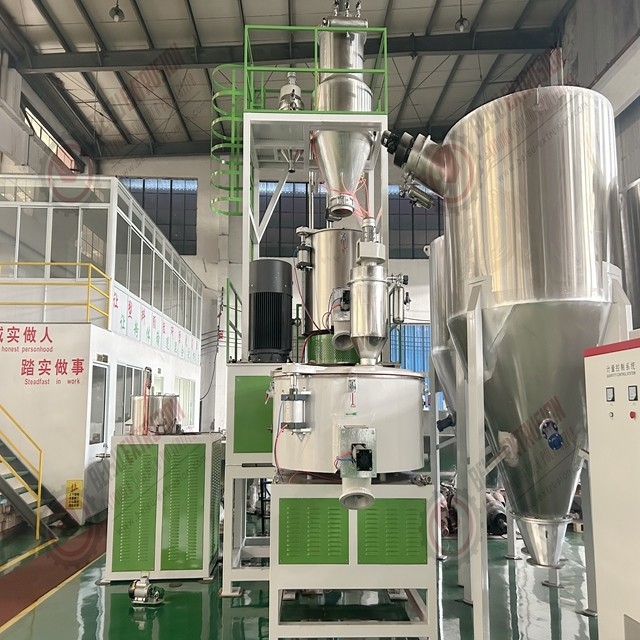

Mixing part
1-Heat the raw materials to 120℃ by self-friction or electric heating, the first batch mixing time is about 15 minutes, and then the second batch mixing time is about 8 minutes
2-Temperature monitoring is transmitted to the PLC system through thermocouples
3-Heating and mixing can choose manual unloading or automatic unloading
4-Cooling uses cooling water and, cooling and mixing for about 8 minutes to 40℃
Final storage
1. Equipped with an anti-bridging device inside, the raw materials will not stick to the storage wall even if they are mixed for a week
2. 2 extrusion lines are equipped with 2 Screw conveyor, fully automatic, no workers required
Main Technical Parameter ( Vertical Cooler) for your reference:
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
| Total volume (L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective Volume (L) | 65/130 | 150/320 | 200/360 | 375/650 | 600/1024 |
| Rotating Speed (RPM) | 650/1300-180 | 475/950-87 | 475/950-87 | 430/860-60 | 357/714-50 |
| Mixing time (Min.) | 8-10 | 8-10 | 8-12 | 8-10 | 8-12 |
| Motor power (KW) | 14/22-7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
| Overall dimension(mm) | 2500*2000*2200 | 4580*2240*2470 | 4800*2640*2480 | 5600*3000*3100 | 6230*4230*4480 |
| Weight(kg) | 2500 | 3600 | 4500 | 5800 | 8300 |
Horizontal Cooling Mixer model
| Model | Capacity (L) | Effective Capacity (L) | Blade Rotating Speed (RPM) | Motor Power (KW) | Capacity (kg/batch) |
| SRL-W500/2000 | 500/2000 | 375/1200 | 430/860-80 | 55/75-18.5 | 150-170 |
| SRL-W800/2500 | 800/2500 | 560/1500 | 357/714-80 | 83/110-22 | 240-260 |
| SRL-W1000/3500 | 1000/3500 | 700/2000 | 325/650-80 | 110/160-37 | 300-330 |
| SRL-W1300/4500 | 1300/4500 | 910/2450 | 300/600-80 | 132/200-37 | 400-450 |
1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
1.Reliable
Most popular design with years' verification.
Mature supply chain for raw materials with strict quality assurance.
International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.
2. Economy
BEISU Stable technology commercialized in China.
High efficiency mixing performance.
Cost effective solutions.
Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
