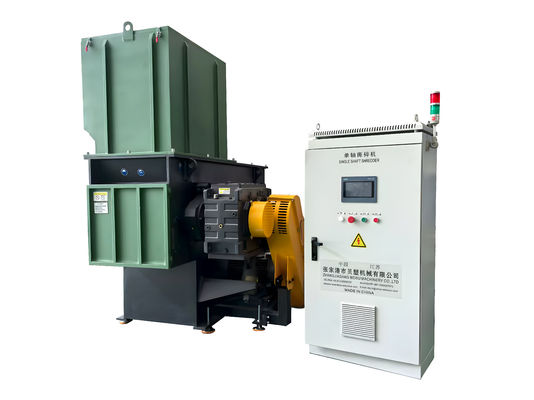

Industrial Plastic Shredder Machine with 22 Kw Motor Power 50MM Screen Sieve and D2/SKD-11 Blades for Efficient Recycling

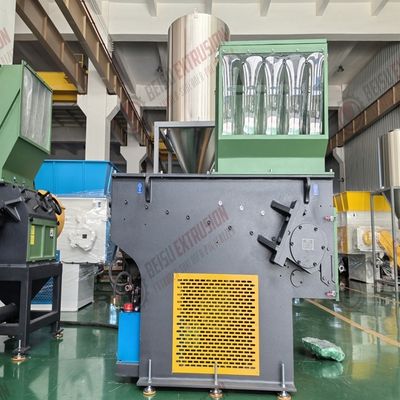

The BS series shredders offer a high degree of automation and high production efficiency, enabling users to cost-effectively recycle large-diameter plastic waste, pipes, and die-cut materials. The single-shaft shredder consists of a motor, hardened gear reducer, rotating blade shaft, imported movable blade, fixed blade, frame, base, housing, hydraulic cylinder, and oil pump.

The fixed blade is mounted on the frame, and the rotating blade shaft is equipped with a removable, embedded movable blade. The movable blade has a four-cornered surface and can be removed and adjusted after wear. Heat-treated to a hardness of HRC609 or higher, it offers a long service life, strong cutting performance, and high production capacity, effectively reducing labor intensity and improving the working environment.

BeiSu Machinery's single-shaft shredders operate as follows:

Pusher: Driven by a hydraulic cylinder, the pusher box pushes the material toward the blade shaft.

Crushing: The material is crushed by the shearing interaction between the movable and fixed blades.

Screen discharge: The crushed material is discharged through a screen, with the discharge size determined by the screen aperture.

Why choose BeiSu Machinery's single-shaft shredder?

A1: Ultra-tough mortise and tenon plate; welded housing construction; sturdy and durable with a long service life; modular assembly for easy maintenance.

A2: "Secrecy" pusher mechanism; energy-efficient and efficient; copper guide bar pusher box; continuous and stable feeding; dual-speed design: fast push with less material, slow push with more material.

A3: Unstoppable blade shaft structure; Baosteel 42CRMO blade shaft; anti-tangling and anti-clogging; rigorous multi-process processing; stable and efficient, increasing the shredding rate by 50%.

A4: Circular, hexagonal, and fishbone screens; strictly control the output size and achieve uniform crushing. Pneumatic spring-assisted screen opening improves operating efficiency. Flexible screens are available to meet various needs and can be customized. A5: The iron frame is thick and sturdy, capable of withstanding high torque. The main chassis is welded and then tempered and finely machined after welding to ensure strength and assembly precision.

A6: Easy adjustment, low maintenance, and economical and durable. The pusher box is equipped with replaceable and adjustable guide bars and guide blocks to ensure smooth material pushing and a tight seal in the crushing chamber.





Zhangjiagang Beisu Machinery Co,Ltd is a certified manufacturer, exporter and supplier of

plastic PVC/PE/PP/PET/EVA/ABS processing machinery. Due to our constant commitment to

extrusion technology, we have emerged as a leading manufacturer of Plastic Extrusion

Machinery for PVC pipes Extrusion Line, HDPE pipes Extrusion Line, PVC compounding

Extruder, PPR Pipes Extrusion Line, PVC profiles Extrusion Line.

Especially High speed Plastic mixer, PVC compounding mixer, SPC mixer.WPC mixer,Plastic Granulating and Pelletizing Line,Plastic pvc pelletizing machine,Soft PVC shoes granulator, PVC compounding pelletizer and Plastic PVC pulverizer, PVC miller,SPC milling machine, WPC pulverizer, SPC pulverizer, PE pulverizer,LDPE pulverizer,PET pulverizer,ABS pulverizer,HDPE pulverizer,Plastic pulverizer, Plastic milling machine, Plastic miller machine,Plastic Crusher,PVC crusher,PE crusher,PP shredder, Plastic PVC Shredder etc for a wide range of extrusion processes.

Installation Instructions

1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.

Our Advantages

1.Reliable

• Most popular design with years' verification.

• Mature supply chain for raw materials with strict quality assurance.

• International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.

2. Economy

• BEISU Stable technology commercialized in China.

• High efficiency mixing performance.

• Cost effective solutions.

After Sales Service

Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
