240mm Rigid Ceiling Panel Pvc Profile Extrusion Machine

240mm Rigid Ceiling Panel Pvc Profile Extrusion Machine
240mm Rigid Ceiling Panel Pvc Profile Extrusion Machine 240mm Rigid Ceiling Panel Pvc Profile Extrusion Machine 240mm Rigid Ceiling Panel Pvc Profile Extrusion Machine

Large Image :  240mm Rigid Ceiling Panel Pvc Profile Extrusion Machine

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic films with wood tray
Delivery Time: 40 DAYS
Payment Terms: L/C, T/T
Supply Ability: 100 SET PER YEAR
Detailed Product Description
PLC Brand: SIEMENS Feeding: Twin Screw Force Feeding
Screw Model: Doube Screw Weight: 3500kg
Application: Profile Condition: New
Plastic Processed: PVC,wood Powder Warranty: 1 Year
Raw Material: PVC
High Light:

240MM pvc profile extrusion machine

,

240MM pvc profile machine

,

135kg/h Pvc Profile Extrusion Machine



240mm Rigid PVC ceiling panel profile extrusion machine with SIEMENS PLC



Consitute of PVC ceiling panel profile extrusion machine:

PVC ceiling panel profile, wallboard, foot line and plastic steel profile equipment have mixing unit, twin-screw extruder, vacuum setting table, tractor, cutting machine and discharging rack to form the main part of the whole production line;



Features of PVC ceiling panel profile extrusion machine:

A1:The PVC ceiling panel profile production line is mainly used for the extrusion production of PVC hollow lattice plates, gusset plates and profiles.
A2:The PVC ceiling panel profile production line adopts SJZ51/105; 55/110/120; 65/132; 80/156 conical twin-screw extruder, which is specially used for extrusion, plasticization and molding of PVC powder raw materials. It has the characteristics of high output, good plasticizing effect and low energy consumption. The conical twin-screw is rotated outward in the opposite direction, and combined with the quantitative feeding screw to control the feeding speed, the uniform extrusion effect of the raw material can be achieved.

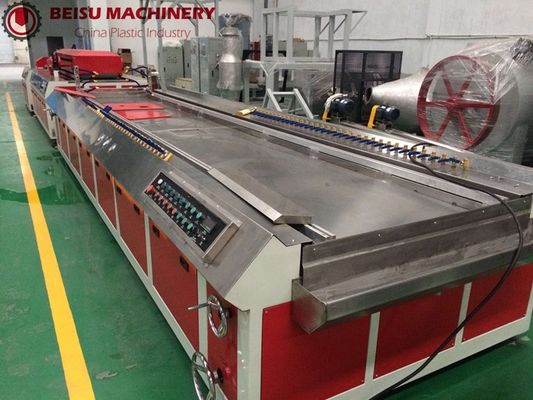

A3:The cooling and cooling of PVC extruded profiles adopts vacuum setting, circulating water cooling system, and the connection between vacuum pipeline and cooling water pipeline is connected by copper joint. The cooling effect can be ensured while ensuring the degree of vacuum.

A4:The PVC profile traction adopts the upper and lower flat block traction track mechanism, the crawler lift adopts the cylinder control control, and has the function of adjustable pressure, thereby controlling the contact area and pressure of the track on the plate and the profile. Moreover, the opposite-direction traction rubber block can be added to conform to the traction of the profiled material, and the sheet profile is not pressed, thereby deforming the product.

A5:The PVC profile cutting machine adopts a lifting knife cutting machine, which is synchronously controlled with the main body extrusion and has accurate cutting.



Details pictures :

240mm Rigid Ceiling Panel Pvc Profile Extrusion Machine 0240mm Rigid Ceiling Panel Pvc Profile Extrusion Machine 1240mm Rigid Ceiling Panel Pvc Profile Extrusion Machine 2240mm Rigid Ceiling Panel Pvc Profile Extrusion Machine 3



Main technical parameter:

Model SJSZ51 SJSZ65 SJSZ80 SJSZ92 SJSZ105
Screw DIA(mm) 51/105 65/132 80/156 92/188 105/216
Qty of screw 2 2 2 2 2
Screw direction Opposite and outer
Screw speed(rpm) 1-37 1-34.7 1-36.9 1-33 1-32
Screw length(mm) 1065 1440 1800 2500 3330
Structure Conical mesh
Main motor power(kw) 22 37 55 90 185
Total power(kw) 38 58 90 140 255
Output(max: kg/h) 135 250 450 800 1400
Qty of barrel heating zone 4 4 5 5 6
Feeder Screw dosing
Center height of machine(mm) 1000 1000 1000 1100 1300





FAQ

Q1: Are you a factory or trading company?
A: We are the manufacturer and we have 5 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory.
Q2: How long is the delivery time?
A: For standard machines, it would be 7-10 working days; For non-standard machines and customized machines according to client s specific requirements, it would be 25 to 35 working days.
Q3: How should I pay for my order ? what is the procession of this purchase?
A:You can do 30% prepayment at first, then we will start to make production. When the machines are ready , we will take pictures and videos to you, and then you can do the balance.After we got your payment. We will send the machine to you.
Q4:How is the machine warranty and after-sale service?
A: All our machine would have a warranty of 12 months since the date of machine installation in client's factory. And beyond warranty period, we can offer spare parts or repair service with or without charges.
