|Output (kg/h):||400-500 Kg/h||Feeding Size (mm):||8 - 10 Mm|
|Motor Power:||90Kw||Blade Type:||40/20|
|Off Fan Blower Motor Power:||1.1Kw||Fan Blower Motor Power:||11Kw|
|Bearing Brand:||NSK||OIL Filling System:||Oil Pump|
|Dust Collection Type:||Bag||Contactor Brand:||SIEMENS|
Fearures and descriptions
A1. Compared with similar PVC pulverizer, its output is greatly improved (increased by 20%-50%) under the same power.
A2. It is energy-saving.
A3. The dust collector is added to effectively reduce dust pollution.
A4. The discharging of the main fan reduces labor intensity of operating workers.
A5. The door cover of the host can be opened for convenience of cutters.
A6. Wind and water cooling system are adopted to decrease the working temperature inside the machine body, so the grinded material uneasy for denaturalization and also conducive to grind heat sensitivity plastics...
A7. The powder mesh is adjustable (10-100mesh).
Mechanical Structure and Operational Principle

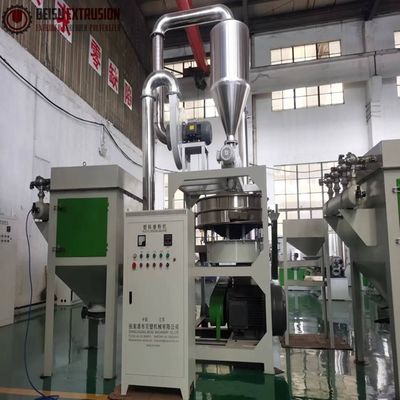

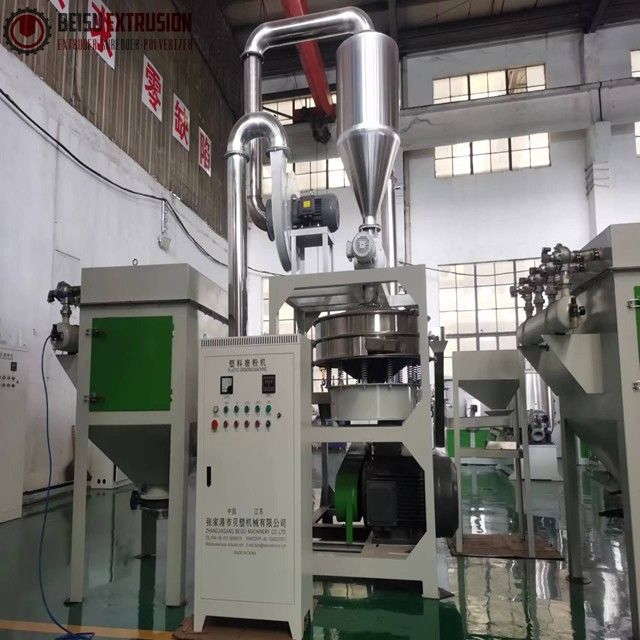

The machine is composed of hopper, cabinet, main shaft, capstan, reclaiming fan blower, dust collecting machine, machine frame, motor, electric apparatus box and so on.
Operating principle: The crashing materials get into the main frame through feeding skip. With the tail-wagging airstreams produced by the tail-wagging of the capstan, the grain-shaped materials tail-wagging in the crocus room, colliding with the board and cutting blades poignantly. After they are crashed, they were sent into dust-collecting bagging through reclaiming fan blower.
A1. We have absorbed the advanced technology at home and abroad to develop the SMW series Rigid Vinyl Plank pulverizer , which is applicable to the powder processing of rigid vinyl plank, PVC plastic (Low to moderate hardness), PVC profile, PVC board scraps.
A2. The practice and experience of plastic product factories show that the chemical physics functions of the products can reaches 320-800kg/h (10-80mesh). So this flooring pulverizer is the best equipment for reducing cost, saving expense and solving the accumulation of waste plastic.
A3. The door cover can be opened, which makes it convenient to check, repair & maintain. Double cooling system of wind & water may cool down material, blade and tooth-shaped plate. This flooring pulverizer has applied strong wind cooling, which can apparently reduce internal temperature of the machine. This is good for grinding heat sensitive tooth shaped plate. Fine powder exits with the air flow, those coarse powder which is near the tooth-shaped plate can not exit due to blocking bar until they are ground into fine powders.
We are able to offer you the bigger capacity of this series. Welcome to contact us.
Send us an inquiry, and you will get more free information now.
|Blades Disk||1,outer diameter: 583mm±1mm|
|Static knife||1 set of 14(High-quality alloy steel, the hardness of 55-58)|
|Rotary Blade||1 set of 28(High-quality alloy steel, the hardness of 52-55)|
|Main Motor Power||45 kw|
|Air shutter power||0.75kw|
