Product Details:
Payment & Shipping Terms:
|
| Name: | Crusher For Plastic Recycling | Suitable Material: | PVC/WPC/PP/PE/PPR/PC/ABS/PMMA/PS |
|---|---|---|---|
| Blade Material: | 9crsi/D2/SKD-11 | Motor Power: | 45 Kw |
| Knife Roll: | Solid Knife Roller | Knife Classification: | Claw Knife Crusher |
| Bearing Brand: | NSK Or SKF | System: | Frequency-Controlled Hydraulic System |
| Highlight: | Industry plastic crushing machine,Soft Elastomer rubber crushing machine,TPE TPR rubber crushing machine |
||

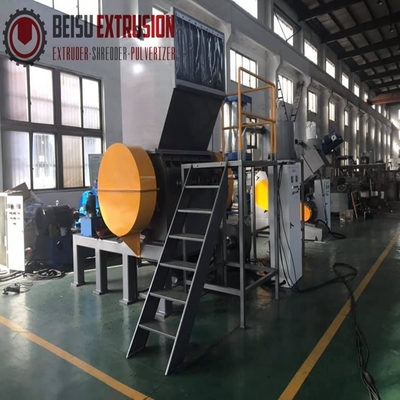

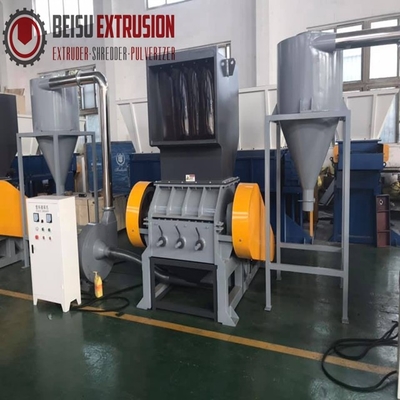

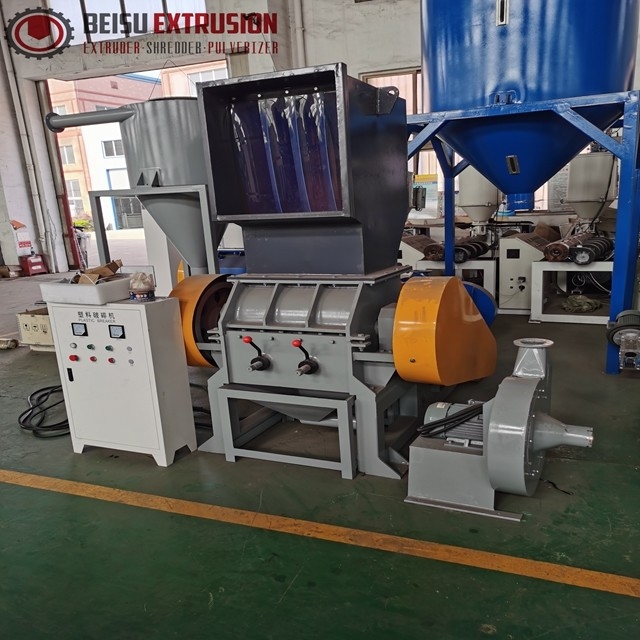

Product Application:Rubber crusher is mainly used to crush waste rubber products, with a wide range of applications: engineering plastics, fiber reinforced plastics, rubber, soft rubber elastomers, films, etc., into small pieces or powder for easy recycling.
Rubber crusher is mainly composed of the following parts:
A1. Feed port: used to put the rubber material to be crushed into the machine.
A2. Crushing chamber: It is the main working area for rubber crushing, with rotating blades or hammers inside.
A3. Blade or hammer: used to cut or hit rubber materials to achieve crushing effect.
A4. Discharge port: The crushed rubber material is discharged through this port.
A5. Transmission system: including motor and transmission shaft, used to drive the blade or hammer to rotate.
A6. Frame: Supports the structure of the entire crusher to ensure stable operation of the equipment.
A7. Control system: used to control the start, stop and speed adjustment of the machine.
These parts work together to achieve effective crushing of rubber materials.
Main Paremeters for Industry rubber crusher:
| Model |
Qty of rotary blade (pcs) |
Qty of fixed blade (pcs) |
Spindle diameter (mm) | Motor power (KW) | Capacity (kg/h) |
| 600 | 36 | 1 | 220 | 30 | 300-500 |
| 800 | 56 | 2 | 320 | 37 | 500-800 |
| 1000 | 68 | 2 | 350 | 55 | 600-1000 |
| 1200 | 84 | 2 | 380 | 75 | 800-1200 |
| 1500 | 120 | 2 | 400 | 90 | 1000-1500 |
| 2000 | 160 | 2 | 450 | 110 | 1200-2000 |
1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
1.Reliable
Most popular design with years' verification.
Mature supply chain for raw materials with strict quality assurance.
International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.
2. Economy
BEISU Stable technology commercialized in China.
High efficiency mixing performance.
Cost effective solutions.
Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
