| Model NO.: | PC-800 | Raw Material: | Waste PVC/SPC/WPC |
|---|---|---|---|
| Application Products: | Pipe/profile/sheet/board | Knife Classification: | Claw Knife Crusher |
| Knife Roll: | Solid Knife Roller | Motor Power: | 37Kw Or 45Kw |
| Blower Motor Power: | 5.5Kw | Capacity: | 450Kg/h |
| Electric Parts: | Star-delta | ||
| Highlight: | V Cut waste plastic crusher,waste plastic crusher for pc,waste pc crusher |
||

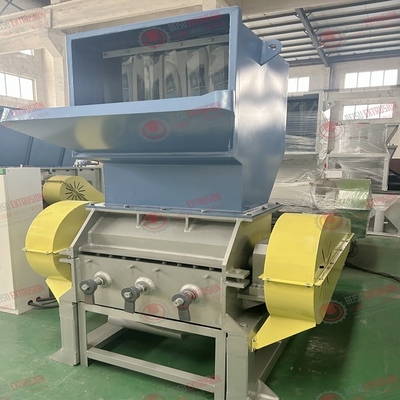

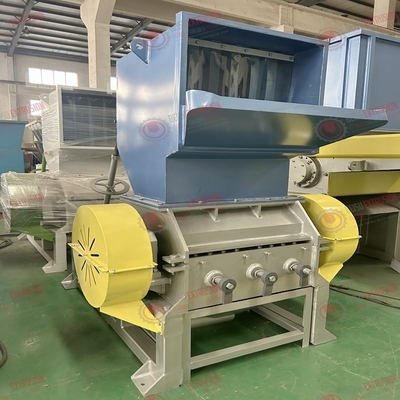

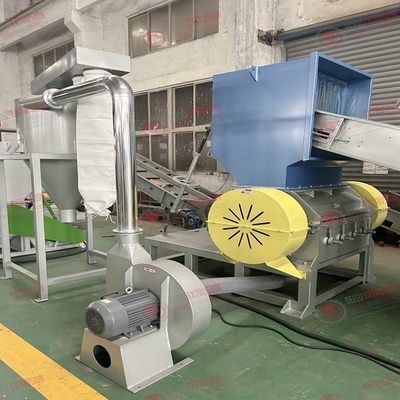

PC series plastic crusher is suitable for crushing various plastics, such as plastic profiles, pipes, rods, wires, films, waste rubber products, etc. The crushed waste can be directly extruded as production raw materials. Applicable materials: PE/PP films, plastic bottles, plastic blocks, plastic baskets, barrels, plastic bags, home appliance shells, car bumpers and other common waste plastics. Customers can equip belt conveyors or air delivery systems and storage silos according to actual needs.
Features of #Plastic grinding crushing machine:
A1. Blade material: High-strength metal DC53 and SKD11 are used as the tool material, the blade is sharp, the blade can be sharpened many times, and the life is long.
A2. Blade structure: We have conducted long-term research and experiments on different raw materials, and provide the most suitable blade structure and shape for each raw material to achieve the best crushing effect.
A3: Hydraulic opening system: With advanced hydraulic opening system, the machine cover can be opened to replace the blade or check the fault more conveniently and labor-savingly while ensuring safety.
A4: Water inlet design: With advanced design concept, water can be added during the crushing process to achieve the effect of cleaning waste plastics.

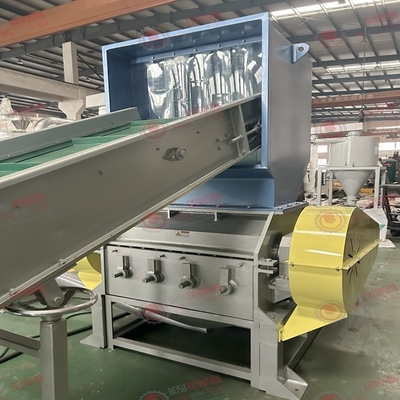

A5: Forced feeding design: For some larger plastics, such as beverage bottles and cans, we need a forced feeding device to prevent the plastic from jumping out and increase the output of the crusher.
Techincal datas for Waste plastic grinding crushing machine:
| Model | Power(kw) | Grinding chamber (mm) | Fixed blades(pcs) | Rotary blade---A(pcs) | Rotary blade---B(pcs) | Output (kg/h) | Dimension(L*W*H) (mm) | Weight (kg) |
| PC-400 | 7.5 | 370*400 | 2 | 6 | 24 | 50-100 | 1420*930*1410 | 535 |
| PC-500 | 11 | 370*500 | 2 | 6 | 30 | 100-150 | 1420*1030*1410 | 600 |
| PC-600 | 15 | 480*600 | 4 | 6 | 30 | 150-250 | 1760*1170*1835 | 1030 |
| PC-700 | 18.5 | 480*700 | 4 | 6 | 36 | 200-400 | 1760*1270*1835 | 1130 |
| PC-800 | 22 | 480*800 | 4 | 6 | 42 | 300-600 | 1760*1370*1835 | 1245 |
| PC-820 | 30 | 800*800 | 4 | 6 | 30 | 500-1000 | 2895*1610*2880 | 2870 |
| PC-1000 | 45 | 800*1000 | 4 | 6 | 39 | 1000-1500 | 2895*1825*2880 | 3236 |
| PC-1200 | 55 | 800*1200 | 4 | 6 | 1500-2000 | 2895*1995*2880 | 3720 |
1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
1.Reliable
Most popular design with years' verification.
Mature supply chain for raw materials with strict quality assurance.
International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.
2. Economy
BEISU Stable technology commercialized in China.
High efficiency mixing performance.
Cost effective solutions.
Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
