Product Details:
Payment & Shipping Terms:
|
| Shaft Quantity: | 1 | Fixed Knife: | 1 Pcs |
|---|---|---|---|
| Rotate Knife: | 36 Pcs | Motor Power: | 45kw |
| PLC Brand: | Simens | Weight: | 4000kg |
| Highlight: | single shaft shredder machine,industrial shredder machine |
||

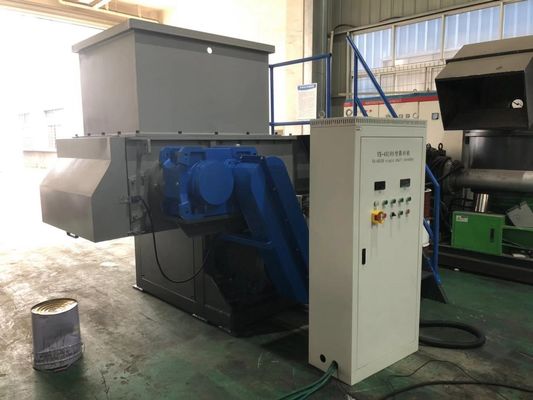

1000 diameter Single Shaft Shredder For Plastic Pipe Fittings Bottles Container
Product description:
Single shaft shredder machine is new designed especially for shredding various big solid materials, unmanageable materials, waste plastic, plastic film, plastic pipe, fiber, wood, animal and paper which the normal crusher can not handle.
Features Specifications:
1. The rotary blade seat and blade can be disassembled which makes it easier to clean and maintain.
2. The rotary blade adopts V shape installation so that the blades can cut material evenly, it can decrease the noise and energy consumption.
3. Each rotary blade has 4 same cutting knife edge, when one side becomes dull, you can change another side into using,which prolongs the service time of rotary blades.
4 The main shaft is driven by gearbox, which supplies steady running and powerful speed.
5. The material keeps being pushed forward by the hydraulic system, which ensures the raw material can be crushed thoroughly and efficiently.
6.PLC program control system, automatically rotating,shut down, safe and reliable running of the machine. The blade can rotate in opposite direction.
Main technical parameter:
| Model | VS2260 | VS4080 | VS40100 | VS40120 | VS40150 | VS48150 |
| Shaft Length(mm) | 600 | 800 | 1000 | 1200 | 1500 | 1500 |
| Shaft Diameter(mm) | 220 | 400 | 400 | 400 | 400 | 480 |
| Move Blades QTY(pcs) | 26 | 46 | 58 | 70 | 102 | 123 |
| Fixed Blades QTY(pcs) | 2 | 2 | 2 | 3 | 3 | 3 |
| Motor Power(KW) | 18.5 | 37 | 45 | 55 | 75 | 90 |
| Hydraulic Power(KW) | 2.2 | 3 | 3 | 4 | 5.5 | 5.5 |
| Hydraulic Stroke(mm) | 600 | 850 | 850 | 950*2 | 950*2 | 950*2 |
| Weight(kg) | 1550 | 3600 | 4000 | 5000 | 6200 | 8000 |
| Capacity(kg/h) | 200-300 | 400-500 | 600-800 | 800-1000 | 1000-1200 | 1500 |
FAQ
Q1: Are you a factory or trading company?
A: We are the manufacturer and we have 5 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory.
Q2: How long is the delivery time?
A: For standard machines, it would be 7-10 working days; For non-standard machines and customized machines according to client s specific requirements, it would be 25 to 35 working days.
Q3: How should I pay for my order ? what is the procession of this purchase?
A:You can do 30% prepayment at first, then we will start to make production. When the machines are ready , we will take pictures and videos to you, and then you can do the balance.After we got your payment. We will send the machine to you.
Q4:How is the machine warranty and after-sale service?
A: All our machine would have a warranty of 12 months since the date of machine installation in client's factory. And beyond warranty period, we can offer spare parts or repair service with or without charges.
