450kg/h Capacity Plastic Pulverizer Machine Easy Installation And Maintenance

450kg/h Capacity Plastic Pulverizer Machine Easy Installation And Maintenance
450kg/h Capacity Plastic Pulverizer Machine Easy Installation And Maintenance 450kg/h Capacity Plastic Pulverizer Machine Easy Installation And Maintenance 450kg/h Capacity Plastic Pulverizer Machine Easy Installation And Maintenance 450kg/h Capacity Plastic Pulverizer Machine Easy Installation And Maintenance

Large Image :  450kg/h Capacity Plastic Pulverizer Machine Easy Installation And Maintenance

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 10 Sets per month
Detailed Product Description
Material: PVC/PE/PP/PET/EVA/ABS/Fiber Miller Model: BS-PVC-600
Motor Power: 75Kw Fan Power: 7.5Kw
Vibrator Power: 1.1Kw Capacity: 450Kg/h
High Light:

plastic grinding pulverizer machine

,

plastic grinding machine

Plastic mill grinding PE/EVA/PVC/PP/PS pulverizer miller machine with invertor



Plastic pulverizer machine introduction:
The series of mills for high-density PE, EVA, SBS, ABS and other plastics have been successfully tested. Therefore, this equipment is a device for reducing the accumulation of waste products in the plastic products factory.



Suitable for PVC, PE, PET recycled materials. It is used for fine grinding of various plastics, especially for processing and grinding thermoplastic PVC PE plastic recycled materials. According to the practice of the professional factory of plastic products, the grinding powder is added in the processing formula by 20%-30%, and the chemical and physical properties of the products remain unchanged. Therefore, it is the best equipment for plastic products factory to reduce the accumulation of waste products....



Plastic pulverizer machine performance characteristics:

The automatic series plastic grinding machine belongs to the series of grinding disc type plastic grinding machine. It has the characteristics of high output and low energy consumption. It is used for grinding powder processing of polyethylene PE, polypropylene PP, polystyrene PS, ABS and other materials.


●The new grinding disc design has high output, strong wear resistance and twice the service life of ordinary grinding discs.
●High speed achieved with newly designed special bearings
● Easy installation and maintenance, the door cover can be cleaned, and the fan discharge reduces the labor intensity of the operator.

● Increased dust collection device, effectively reducing dust pollution, completely sealed during grinding, no dust leakage
● Fully automated, automatic feeding, discharging, sorting
●The adjustment of the grinding gap is simple and can be precisely adjusted by using the feeler gauge and adjusting bolts.
●The main engine cooling system is cooled by wind and water. It is cooled by feng shui, which lowers the working temperature inside the machine. The material is not easy to change color, and it is also beneficial to the grinding of heat sensitive plastic. It can be used for some PE and EVA. , SBS, ABS grinding
● Reasonable design, small cross section of the grinding cavity, the material will be caught and ground immediately as soon as it enters, and it will be removed quickly, avoiding the temperature rise and decomposition of the material, thus achieving higher output.



Customer case

HDPE, LDPE, LLDPE, ultra high molecular weight PE grinding and milling

(including rotomolding new material grinding, rotomolding defective material grinding, grinding beyond molecular weight crushing material, modified material grinding, masterbatch grinding, filler grinding, film crushing, etc.)



Soft PVC, neutral PVC grinding and milling, hard PVC grinding and milling

(including infusion tube crushing material grinding, curtain crushing material grinding, film crushing material grinding, label paper crushing material grinding, cable crushing material grinding, card crushing material grinding, wood plastic crushing material grinding, etc.)



Grinding of other materials (melting point above 80 degrees)

(Including PET crushing material grinding, some PP, ABS, EVA, nylon, rubber grinding, etc. For special materials, users need to provide sample test when ordering to ensure the grinding is qualified)

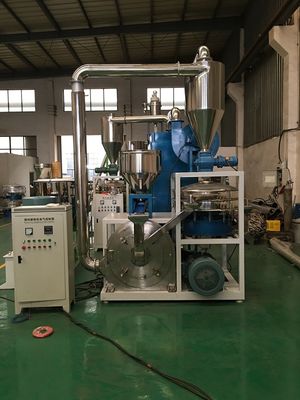

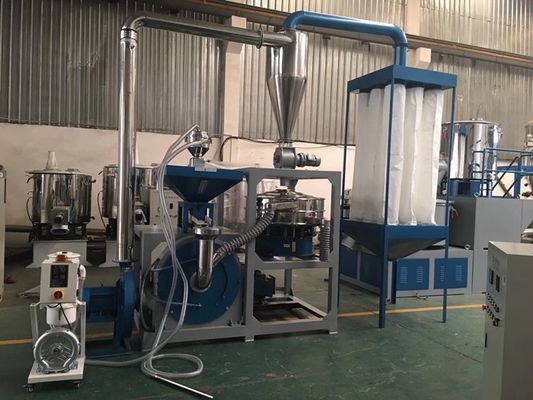

Details specification pictures of Plastic pulverizer:

450kg/h Capacity Plastic Pulverizer Machine Easy Installation And Maintenance 0

450kg/h Capacity Plastic Pulverizer Machine Easy Installation And Maintenance 1

450kg/h Capacity Plastic Pulverizer Machine Easy Installation And Maintenance 2



Technical dates of Plastic pulverizer:

A1:PP/EVA/ABS pulverizer

model MF400 MF500 MF600 MF800
diameter of blade 400MM 500MM 600MM 800MM
main motor power 30kw 45kw 55kw 75kw
blade material SKD-11 or D53 SKD-11 or D53 SKD-11 or D53 SKD-11 or D53
capacity around 100kg/h around 200kg/h around 300kg/h around 500kg/h



A2:HDPE/LLDPE /soft PVC/PET etc pulverizer

model MF400 MF500 MF600 MF800
diameter of blade 400MM 500MM 600MM 800MM
main motor power 30kw 45kw 55kw 75kw
blade material SKD-11 or D53 SKD-11 or D53 SKD-11 or D53 SKD-11 or D53
capacity around 100-150kg/h around 250kg/h around 350kg/h around 500kg/h



A3:Hard PVC pulverizer:

model MF400 MF500 MF600 MF800
rotary blade qty 18 24 28 40
fixed blade qty 10 12 15 20
main motor power 30kw 45kw 55kw 75kw
blade material high chromium alloy high chromium alloy high chromium alloy high chromium alloy
capacity around 100-150kg/h around 250kg/h around 350kg/h around 500kg/h
