600kg / H Pvc Pulverizer Machine For Pipe Extrusion Line , Plastic Grinding Machine

600kg / H Pvc Pulverizer Machine For Pipe Extrusion Line , Plastic Grinding Machine
600kg / H Pvc Pulverizer Machine For Pipe Extrusion Line , Plastic Grinding Machine 600kg / H Pvc Pulverizer Machine For Pipe Extrusion Line , Plastic Grinding Machine 600kg / H Pvc Pulverizer Machine For Pipe Extrusion Line , Plastic Grinding Machine 600kg / H Pvc Pulverizer Machine For Pipe Extrusion Line , Plastic Grinding Machine

Large Image :  600kg / H Pvc Pulverizer Machine For Pipe Extrusion Line , Plastic Grinding Machine

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 10 Sets per month
Detailed Product Description
Material: PVC/PE/PP/PET/EVA/ABS/Fiber Miller Model: BS-PVC-800
Motor Power: 75Kw Fan Power: 7.5Kw
Vibrator Power: 1.1Kw Capacity: 600Kg/h
High Light:

plastic grinding pulverizer machine

,

plastic grinding machine



BS-800 600kg/h PVC pulverizer milling machine for pipe extrusion line



Plastic pulverizer machine introduction:

The plastic mill http://www.beisu-extrusion.comcan be divided into two types: grinding disc type and cutter disc type. The grinding disc grinding machine mainly cuts and grinds the material by the gap between the two grinding discs. The cutter disc type grinder is driven by the material and the cutter head. Grinding, plastic mill is named after years of practical performance and operation. Based on the absorption and introduction of foreign advanced equipment, Jianuo Machinery has successfully designed and developed to meet the needs of customers. Ideal equipment for PVC, high density PE, PS, SBS, foamed PE, EVA, soft PVC and other thermoplastic materials, plant fiber and leather. It is also a processing equipment for recycling and recycling of plastic products. It is a good helper for plastic products enterprises to solve the problem of waste product backlog and reduce costs. It has high output, low energy consumption, can be adjusted freely, easy to maintain, environmentally friendly and pollution-free. Compared with similar products, it has upgraded to a new level.



Mechanical structure and working principle:

The machine is mainly composed of feed hopper, feeder, casing, grinding disc, spindle, cutter head, main motor, discharge fan, dust collector, frame, vibrating screen and electrical box.



Working principle: The material enters the machine body from the feeding hopper through the vibrating feeder. The high-speed rotation of the grinding disc driven by the main shaft collides with the fixed knife, and the material is cut into powder, and then the powder is sent to the cyclone by the discharging fan. The inner part is separated, and the powder is sent out to the vibrating screen by the fan, and the air is discharged by the dust collecting device.



Installation, test operation instructions:

1A: Familiar with product manual, local structure, electrical button function.



2A: Installation steps

1: The equipment rack part is smoothly installed in a proper position, and there is room for operation and maintenance around the machine.

2: Fix the cyclone separator on the shut-off fan, and then connect the dust collector to the cyclone separator.

3: Connect the power supply, water source (380V50HZ three-phase four-wire system), the special voltage is subject to the local user.

4: After the whole machine is installed, check whether the screws of each fixed part are tightened.



zhangjiagang beisu machienry main mahine sales http://www.beisu-extrusion.com: plastic mill, PE mill, PVC mill, grinding disc mill, high-speed mixer, high-speed mixing unit, PVC mixer, high mixer

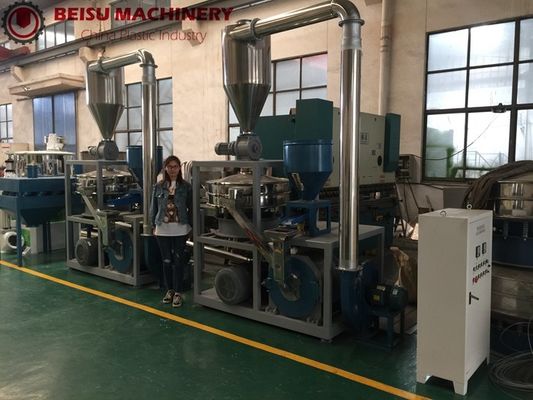

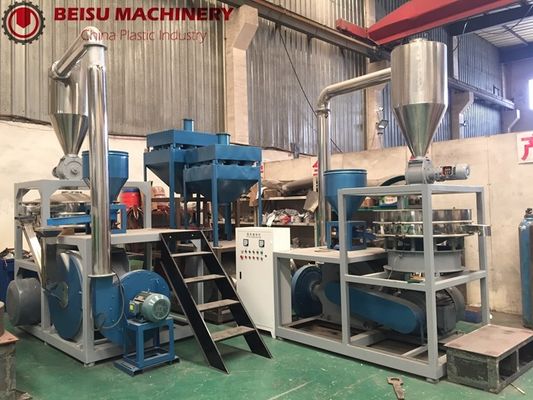

Details specification pictures of Plastic pulverizer:

600kg / H Pvc Pulverizer Machine For Pipe Extrusion Line , Plastic Grinding Machine 0600kg / H Pvc Pulverizer Machine For Pipe Extrusion Line , Plastic Grinding Machine 1600kg / H Pvc Pulverizer Machine For Pipe Extrusion Line , Plastic Grinding Machine 2

Technical dates of Plastic pulverizer:

A1:PP/EVA/ABS pulverizer  http://www.beisu-extrusion.com

model MF400 MF500 MF600 MF800
diameter of blade 400MM 500MM 600MM 800MM
main motor power 30kw 45kw 55kw 75kw
blade material SKD-11 or D53 SKD-11 or D53 SKD-11 or D53 SKD-11 or D53
capacity around 100kg/h around 200kg/h around 300kg/h around 500kg/h



A2:HDPE/LLDPE /soft PVC/PET etc pulverizer http://www.beisu-extrusion.com

model MF400 MF500 MF600 MF800
diameter of blade 400MM 500MM 600MM 800MM
main motor power 30kw 45kw 55kw 75kw
blade material SKD-11 or D53 SKD-11 or D53 SKD-11 or D53 SKD-11 or D53
capacity around 100-150kg/h around 250kg/h around 350kg/h around 500kg/h



A3:Hard PVC pulverizer:http://www.beisu-extrusion.com

model MF400 MF500 MF600 MF800
rotary blade qty 18 24 28 40
fixed blade qty 10 12 15 20
main motor power 30kw 45kw 55kw 75kw
blade material high chromium alloy high chromium alloy high chromium alloy high chromium alloy
capacity around 100-150kg/h around 250kg/h around 350kg/h around 500kg/h
