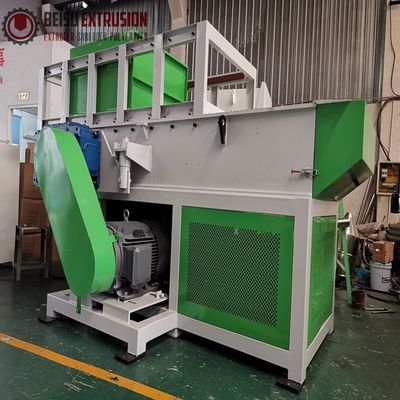

630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt

630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt
630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt

Large Image :  630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt

Product Details:
Place of Origin: CN;JIA
Brand Name: BEISU
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 2 Sets
Price: $22,000.00
Packaging Details: Film packing or wood package as customer requirements
Supply Ability: 200 Set/Sets per Year
Detailed Product Description
Condition: New Machine Type: Plastic Shredder
Max.Production Capacity (kg/h): 3000 Production Capacity (kg/h): 500 - 3000 Kg/h
Use: Waste Plastic Crusher Shaft Design: Single
Voltage: 220V/380V/415V/440V Dimension(L*W*H): 4000mm*2500mm*2200mm
Power (kW): 55 Weight (T): 4
Key Selling Points: Automatic Raw Material: PE Pipes/PVC Pipes/Wood/Pallets/Plastic Containers
Motor Power: 55Kw Material Blade: SKD-11 Or Stainless Steel Or Tungsten Steel
Blade Type: V Rotary Blade: 68
Fixed Blade: 2~4PCS Bearing Brand: NSK Or SKF Or Wafandian
OIL Filling System: Oil Pump Contactor Brand: SIEMENS
PLC: SIEMENS Port: SHANGHAI Or NINGBO PORT
High Light:

HDPE Pipe Plastic Shredder Machine

,

630mm plastic shredder machine

,

plastic shredder machine 55kw


630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 0
Application of single shaft shredder: It can be used to tear up solid materials such as plastic, rubber, fiber, paper, wood, electrical parts, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc. You can select the corresponding model according to the material size and handling capacity. If users need to break especially hard materials, such as nylon, ABS, PC and other high-strength engineering plastics, they need to explain the situation.


Working principle of single shaft shredder: The material enters the case from the feed hopper, the pusher pushes the material to the rotary knife roller under the push of the hydraulic cylinder, the rotary moving knife and the fixed knife break the material, the broken material falls through the screen, and then it is transported to the next process or collected and packed through the auxiliary conveying equipment.

Rotor and Screen: The blade of single axis shredder is made of DC53 material, with high wear resistance and durability;Tungsten carbide can be used on the surface of the spindle of the cutter roll of the single axis shredder, which has high wear resistance and durability, and can be repeatedly repaired; the cutter can be used on both sides, and the size of the mesh hole can be adjusted according to the discharge requirements of the user



Bearing block: The special split design ensures that the dust in the tearing chamber will not enter into the bearing. The cylindrical roller self-aligning bearing produced in Luoyang is adopted to ensure that the equipment can adjust the center independently to reduce the noise when tearing materials.

Hardened reducer: The gears of the hard gear reducer are made of high-strength low-carbon alloy steel through carburizing and quenching. The hardness of the gear surface is high. The gears are all CNC gear grinding technology, with high precision, good contact, high transmission efficiency, stable operation and low noise
Shock absorber:High efficiency motor star delta start, equipped with hydraulic clutch;Type III reducer - directly connected with knife stick;Reducer damping - protects the power system from damage caused by reduced pressure.
Control Cabinet:The designer has many years of experience in the production and field use of the electric control cabinet. In the design of the electric control cabinet, all possible situations have been taken into account to ensure the advanced and perfect design idea of the system Siemens relay and indicator light imported from Japan are used to ensure stable, safe and reliable operation of the system
630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 1
630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 2
630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 3
630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 4
630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 5
630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 6
630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 7
630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 8
630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 9
630mm PVC HDPE Pipe Plastic Shredder Machine With Magnetic Separator Conveyor Belt 10

Shredder Mode
BS-800
BS-1000
BS-1200
Diameter Rotary
255mm
255mm
300mm
Rotate the numberof knives
45
58
71
Rotate the cutter shaft speed
90rpm
87rpm
87rpm
Number of fixed knlves
2
2
2
Hydraulic power
3kw
5.5kw
5.5kw
Working pressure
6-12Mpa
6-12Mpa
6-12Mpa
Crusher capacity
250-450kg/h
300-600kg/h
500-1000kg/h
Feeding caliber
800mm*950mm
1000mm*1000mm
1200mm*1100mm
Power f main motor
37kw
55kw
75kw
Host weight
4500kg
6000kg
8000kg
External dimension
3300*1800*2400mm
3850*2000*2700mm
4000*2200*2800mm
Maximum yield
900kg/h
1000kg/h
1200kg/h
