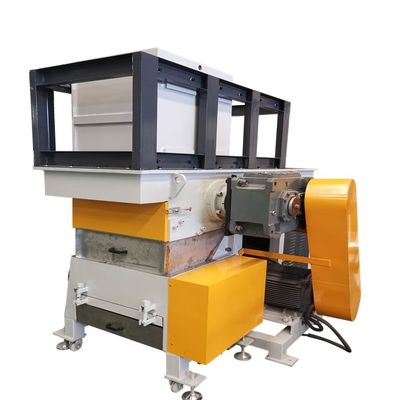

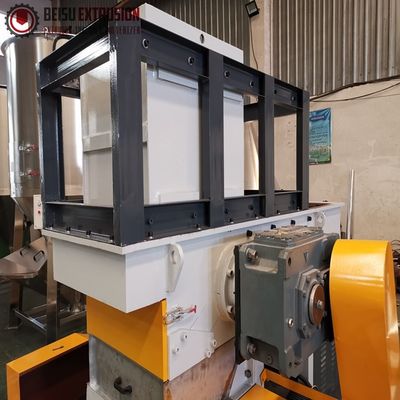

350kg/H PS Single Shaft Shredder Grinder Machine

Certification

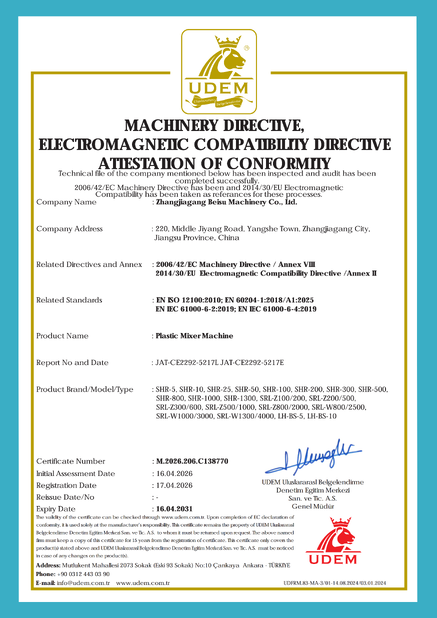

China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

350kg/H PS Single Shaft Shredder Grinder Machine

350kg/H PS Single Shaft Shredder Grinder Machine
350kg/H PS Single Shaft Shredder Grinder Machine 350kg/H PS Single Shaft Shredder Grinder Machine 350kg/H PS Single Shaft Shredder Grinder Machine 350kg/H PS Single Shaft Shredder Grinder Machine 350kg/H PS Single Shaft Shredder Grinder Machine 350kg/H PS Single Shaft Shredder Grinder Machine

Large Image :  350kg/H PS Single Shaft Shredder Grinder Machine

Product Details:
Place of Origin: CN;JIA
Brand Name: BEISU
Certification: CE,ISO
Model Number: BS-600
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $14,000.00
Packaging Details: Film packing or wood package as customer requirements
Supply Ability: 200 Set/Sets per Year
Detailed Product Description
Condition: New Plastic Type: PS
Machine Type: Plastic Shredder Max.Production Capacity (kg/h): 350
Production Capacity (kg/h): 300 - 350 Kg/h Use: Waste Plastic Crusher
Shaft Design: Single Voltage: 220V/380V/415V/440V
Dimension(L*W*H): 3000mm*1500mm*2200mm Power (kW): 37
Weight (T): 1500 Key Selling Points: Automatic
Raw Material: PE Pipes/PVC Pipes/Wood/Pallets/Plastic Containers Motor Power: 37Kw And 15Kw
Material Blade: SKD-11 Or Stainless Steel Or Tungsten Steel Blade Type: V Or W
Rotary Blade: 26 Fixed Blade: 2PCS
Bearing Brand: NSK Or SKF Or Wafandian OIL Filling System: Oil Pump
Contactor Brand: SIEMENS PLC: SIEMENS
Port: SHANGHAI Or NINGBO PORT
High Light:

single shaft shredder grinder machine

,

PS shredder grinder machine

,

350kg/H Shredder Grinder Machine

350kg/H PS Single Shaft Shredder Grinder Machine 0

Plastic film, thick wall pipes plastic crusher Line Single Shaft Shredder Equipment:

  1. Compact Single shaft shredder combined with great power.
  2. Variable adjustable screens to determine the size of the chips
  3. Hydraulic feed to ensure constant material flow to the rotor
  4. V-belt drive gear reduction through spur gearing
  5. Hydraulic unit and hydraulic cylinder suspended by cardanic joints
  6. in small or medium-sized companies which attach great importance to an optimum cost -benefit ratio.



Applications of Single Shaft Shredder:

To process plastic material: thick wall diameter plastic pipes, plastic film, waste injection products,

  1. plastic bottles, bags, and so on.
  2. strong crushing shredders
  3. contrarotation with the structure of close-lined rotary knives in double direction.



Features of Single Shaft Shredder:

1.The shredder rotation of low speed 60~100rpm which could working steady and gentle even when process really rough pieces.
2.High quality gearbox used on driving system.
3.High thickness steel used on sturcture and frame for enhancing the stability of equipment.
4.Long life knives used. The unique designed square knives are bolted on the strong rotor and the jagged teeth knife installed in
front side of the cut chamber stationary knife which are the key parts for cut off all the feeded materials.Square knives has four edges could be change before replacement.
5.The PLC controlled hydraulic pusher forces material to the rotor automatically.
6.Low Power consumption
7.The screen filter sizes ranges for varies material particle size control.
8.Easy for operation maintainence
350kg/H PS Single Shaft Shredder Grinder Machine 1
350kg/H PS Single Shaft Shredder Grinder Machine 2
350kg/H PS Single Shaft Shredder Grinder Machine 3
350kg/H PS Single Shaft Shredder Grinder Machine 4
350kg/H PS Single Shaft Shredder Grinder Machine 5
350kg/H PS Single Shaft Shredder Grinder Machine 6
350kg/H PS Single Shaft Shredder Grinder Machine 7
350kg/H PS Single Shaft Shredder Grinder Machine 8
350kg/H PS Single Shaft Shredder Grinder Machine 9
Model
Power
(KW)
Hydraulic power
(KW)
Rotor diameter
(mm)
Capacity approx.
(kg/h)
BS-600
18.5/22
1.5
300
300-500
BS-800
37/45
2.2
400
500-800
BS-1000
55/75
2.2
400
800-1000
BS-1200
75/90
5.5
450
1000-1500
BS-1500
90/110
5.5
500
1500-2000
