Product Details:
Payment & Shipping Terms:
|
| Output (kg/h): | 500 - 600 Kg/h | Feeding Size (mm): | 8 - 10 Mm |
|---|---|---|---|
| Output Size (mesh): | 20 - 80 Mesh | Power (kW): | 45 |
| Range Of Spindle Speed(r.p.m): | 2900 - 3700 R.p.m | Type: | Pulverizer |
| Voltage: | 220V/380V/415V/440V | Dimension(L*W*H): | 2000mm*2800mm*3200mm |
| Weight (KG): | 2000 KG | Raw Material: | PVC |
| Motor Power: | 90Kw | Material Blade: | High Alloy Steel |
| Blade Type: | Disc | Off Fan Blower Motor Power: | 1.1Kw |
| Fan Blower Motor Power: | 11Kw | Bearing Brand: | NSK |
| OIL Filling System: | Oil Pump | Dust Collection Type: | Bag |
| Contactor Brand: | SIEMENS | Port: | SHANGHAI Or NINGBO PORT |
| High Light: | Disc Blade PVC Pulverizer Machine,PVC Pulverizer Machine 500kg/H,Disc Blade plastic pulverizer machine |
||

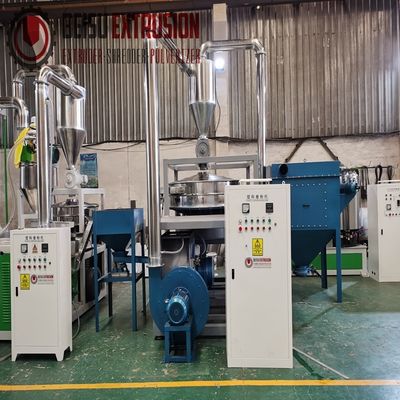

Application of PVC WPC SPC pulverizer grinding milling machine:
PVC pulverizer is mainly used to recycle crushed PVC materials such as PVC pipes, PVC profiles, PVC ceiling panel, PVC foam boards, etc., to grind PVC into powder, and mix with new materials for using again. The final powder size is 30-80 mesh, which can be adjusted according to customer requirements. We specialize in the production of pulverizer in China for many years, which have good stability, long service life and high output.
Features of PVC WPC SPC pulverizer grinding milling machine:
● Plastic pulverizer adopts a new type of cutter structure, which improves the output and overcomes the characteristics of low PE output and coarse powder.
The plastic mill has high output, fine milling, energy saving and environmental protection.
● The plastic mill has a wide range of applications, and can grind PVC, PE, PS, PA, PC and other plastics.
● The plastic mill is easy to install and maintain, and it can be cleaned by opening the door.
● The entire plastic grinding process of the plastic mill is fully sealed, and there is no dust pollution.
● The powder size of the plastic mill is adjustable from 10 to 120 meshes, and it is easy to adjust.
The cooling system of plastic pulverizer adopts wind and water combined cooling.
● High-quality wear-resistant steel knives for plastic pulverizers, with high output and good wear resistance.
● The plastic mill is fully automatic and continuous operation.
● The plastic mill has a compact structure and a small footprint.
● The all-steel structure of the plastic pulverizer is integrated, which is stable and reliable.
● The closed design of the plastic mill uses its own air volume and pressure to collect the prepared powder without any dust leakage.
● The humanized knife adjustment of the plastic mill, the design concept, and the adjustment of the fixed knife gap only takes a moment and is easy.
● The plastic mill is easy to maintain and clean.
● Plastic pulverizer This machine can grind all kinds of soft and hard leather into fibrous form at room temperature: artificial leather, PVC, PE and other materials with different molecular structures are ground into 20-80 mesh powder, especially suitable for plastic modification.
Parameters of PVC WPC SPC pulverizer grinding milling machine :
| Model | Motor power(kw) | Output(kg/hr) |
| SMF-400 | 30kw | 80-100kg/hr |
| SMF-500 | 45kw | 180-250kg/hr |
| SMF-600 | 55kw | 300-400kg/hr |
| SMF-800 | 90kw | 450-600kg/hr |
