|Material:||WPC/UPVC/CPVC/UPVC/OPVC||Products Usage:||PVC Pellets Granules|
|Extruder Model:||SJSZ65/132||Motor Power:||37Kw|
|Cutting Method:||Hot-die||Cutting Blades Quantity:||3 PCS|
|Fixed Blade:||1 PC||Cutting Speed:||1440rpm|
Twin Screw Extruder Pelletizing Making Machine,
Hot-die 37Kw Pelletizing Making Machine,
Plastic Pelletizing Machine With Knife Cutting
SJSZ65/132 Twin screw extruder pelletizing making machine line with knife cutting
Features Specifications for SJSZ65/132 Twin screw extruder pelletizing making machine line:
The PVC twin-screw extruder granulator is a high-speed twin-screw extruder with forced conveying, high-efficiency plasticizing and mixing and shearing dispersion. The back pressure of the inorganic head is refluxed to avoid high shear and overheating. The lower-stage extruder is a large-diameter single-screw extruder operating at low speed, with independent temperature control, low-speed operating with low shear force, internal cooling of the screw to avoid decomposition of plasticized materials, and single-screw extrusion to ensure the establishment of pressure and stable extrusion Out.
PVC twin-screw extrusion granulator application range: heat-sensitive polymer processing, large-capacity exhaust gas devolatilization treatment. Typical materials: PVC cable material, PVC transparent material, PVC tube material, low-smoke, low-halogen or low-smoke halogen-free cable material, various PE cross-linked materials and rubber dehydration post-processing operations.
Product performance of SJSZ65/132 Twin screw extruder pelletizing making machine line:
1. Feeding system single screw or twin screw feeding, stainless steel hopper, Japanese imported frequency converter.
2. Drive system Z4Eurotherm speed governor, can also adopt AC variable frequency speed regulating motor according to user requirements. DC motor, equipped with the most advanced British imports
3. Coupling: direct-coupled transmission helps to improve the power transmission coefficient
4. Transmission system: hard-tooth surface gear transmission, transmission and deceleration are integrated, imported SKF bearings, imported oil seals, and gears are forced to lubricate.
5. Extrusion system: screw length-diameter ratio 28-56, maximum screw speed 500rpm, screw element material is high-quality alloy steel W6Mo5Cr4V2, surface hardness HRC58-60 after heat treatment, barrel bushing material is α101, surface hardness HRC60-64, The threaded element and the mandrel are connected by the most advanced involute spline.
6. Temperature control system The cast copper and cast aluminum heaters are distributed in different positions of the barrel according to the needs, all stainless steel soft water cooling system, imported solenoid valve.
7. Vacuum system: Set up exhaust and vacuum ports according to the process, the vacuum degree can reach -0.04-0.08Mpa, all made of stainless steel.
8. Rack system: profiled steel welded integral rack, easy for users to install. Stainless steel housing.
Technical parameters for SJSZ65/132 Twin screw extruder pelletizing making machine line:
|Model||Length to Diameter
|PVC 110||1:24||220-260||25-70(R/min)||30kw frenquency
|PVC 120||1:22||250-320||0-70(R/min)||37kw frenquency|

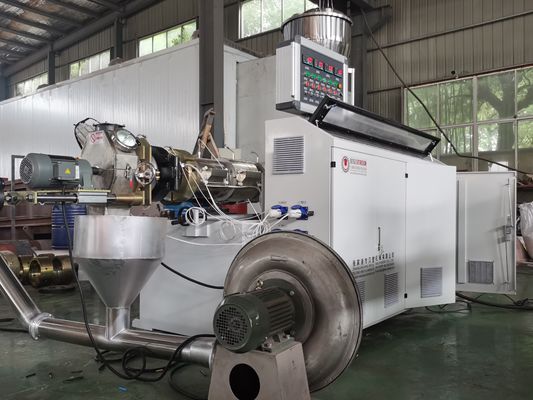

Details specification picture:
