150Kg/h Water-Cooling Double Stage Plastic Pelletizing Machine for PE PP Recycling Granulation

150Kg/h Water-Cooling Double Stage Plastic Pelletizing Machine for PE PP Recycling Granulation
150Kg/h Water-Cooling Double Stage Plastic Pelletizing Machine for PE PP Recycling Granulation
video play

Large Image :  150Kg/h Water-Cooling Double Stage Plastic Pelletizing Machine for PE PP Recycling Granulation

Product Details:
Place of Origin: CHINA
Brand Name: BEISU
Certification: CE
Model Number: BS-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD28000
Packaging Details: Wood pallet and film cover
Delivery Time: 35 working days
Payment Terms: T/T,L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Dimension: 12000/3600/2500 MM,10000*1200*1500MM,12m*2m*3m,13mx3.4mx3m,As Model Voltage: 380V,Customized,220V/380V,220/380/415v,380V Or As Per Client's Request
Material Processed: PE Film PP Woven Bags,soft Pvc,Waste PP PE ABS Plastic,granulator Machine Type: Single Stage Pelletizing, Double Stage Pelletizing, Single Screw Extruding Machine; Plastic Pellet Machine Extruder
Capacity: 100-1000kg/h,300kg/h,100kg,80-800kg/h,360-560kg/h Screw Design: Single,Double,Single/Double
Highlight:

150Kg/h Plastic Pelletizing Machine

,

Water-Cooling Plastic Granulating Machine

,

Single Stage Plastic Pellet Maker

150Kg/h Plastic Recycling PE PP Granulation Extruding Pelletizer Machine
Applications

This water-cooling single screw plastic pellet making machine is a single stage plastic regenerative pelletizer, suitable for recycling various plastic waste materials and making pellets from PP, HDPE, LDPE, LLDPE film, and clean woven/nonwoven bag materials. The film can be pressed in the compressor before pelletizing.

Process Flow

Conveying feeding → Metal detector → Film Agglomerator → Degassing single screw extruder → Hydraulic filter → Mould head → Water ring cutting → Dewatering machine → Air dryer blowing system → Storage hopper → Finished product packing.

Detailed Equipment Description
  • Conveyor: Transports PP PE film or flakes into compactor
  • PE Film Agglomerator/Compactor: Crushes and compresses film, feeding compressed film into extruder for high and stable production capacity
  • Extruding System: Plasticizes material and exhausts gas
  • High-speed Net Exchanging System and Die-head: Filters material impurities for stable production
  • Water Ring Pelletizing Machine: Cuts pellets in water
  • Water Tank: Cools pellets
  • Dewater Machine: Dries pellets
  • Vibration Sieve: Removes bad pellets and keeps good pellets
  • Air Blower: Conveys good pellets into silo
  • Storage Silo: Stores pellets
Equipment List
  • Belt conveyor (can equip metal detector)
  • Agglomerator/Compactor machine
  • Extruder
  • Die head and screen changing device
  • Water ring cutter
  • Vibrating screen
  • Vertical dewatering machine
  • Air drying system
  • Cyclone hopper
System Configuration
No. Equipment List
1 Belt conveyer
2 Crushing barrel
3 Extruder
4 Die head and screen changing device
5 Water ring cutter
6 Vibrating screen
7 Vertical dewatering machine
8 Air drying system
9 Cyclone hopper
Main Specifications
Model Extruder Screw diam.(mm) L/D Ratio Power(kw) Capacity (PE) (kg/h) Capacity (PP) (kg/h)
BS-100 SJ100/33 100 33:1 210 280-350 250-300
BS-130 SJ130/33 130 33:1 300 480-550 400-480
BS-160 SJ160/33 160 33:1 370 650-750 550-650
BS-180 SJ180/33 180 33:1 460 800-1000 750-850
Machine Gallery

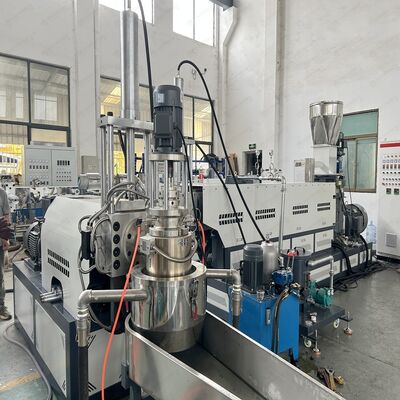

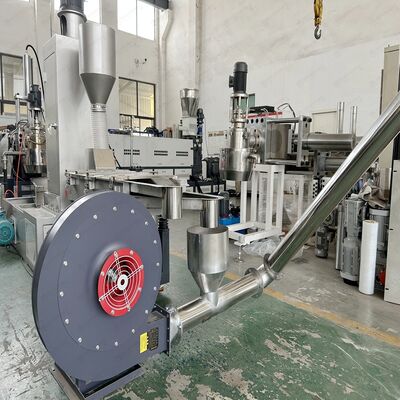

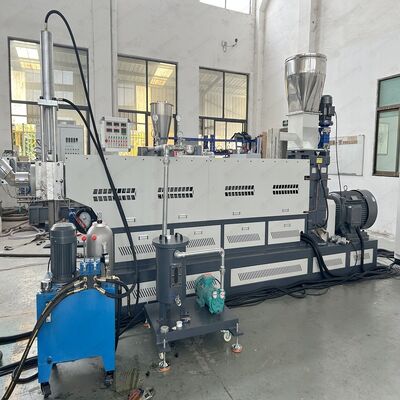

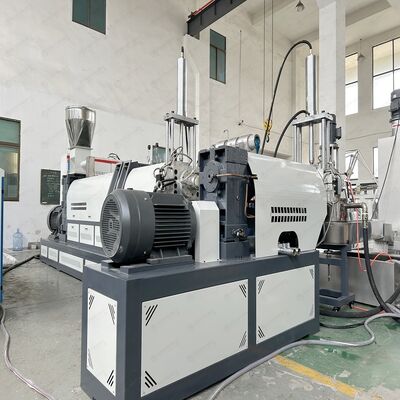

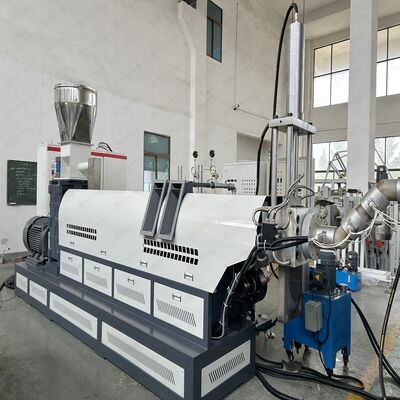

Plastic pelletizer machine overview Extruder system close-up Water ring cutting system Control panel and interface Dewatering machine component Finished pellets outputFinished pellets outputFinished pellets outputFinished pellets outputFinished pellets output
Frequently Asked Questions
Are you a trading company or manufacturer?
BEISU is a Factory-Outlet Platform for excellent manufacturers only!
As the shipping period will take long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, and we use steel wire to fix the machine with the container to ensure smooth delivery.
I am foreign customer, if the product's part is broken, how can get help from you?
Some standard configurations you can buy in your local market, such as brand motor.
Could I know the process of manufacturing production after placing the order?
Our sales will share video after testing, or take online video when testing machine. You are also welcome to visit our factory to see machine testing.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings according to the quantity.
Where is your factory located? How can I visit there?
Our company is located in ZhangJiaGang City, China. We welcome you to visit our office for a face-to-face meeting.
We are new buyers, do not know how to buy? Can we use our own freight forwarding?
We provide guidance for security and have long-term freight forwarder partners. You can use your own freight forwarding.
Our Service
  • One year guarantee for whole machine
  • 24 hours technical support
  • Our engineers can provide service overseas (service is free, but customer covers round air-tickets, food and hotel)
  • After a year, we instruct maintenance and provide spare parts at best price
  • Training service to help operators handle the machine well
