High Speed MF-600 HDPE SPC Pulverizer Grinding Machine With Air Cold Chiller

High Speed MF-600 HDPE SPC Pulverizer Grinding Machine With Air Cold Chiller
High Speed MF-600 HDPE SPC Pulverizer Grinding Machine With Air Cold Chiller
video play

Large Image :  High Speed MF-600 HDPE SPC Pulverizer Grinding Machine With Air Cold Chiller

Product Details:
Place of Origin: CN
Brand Name: BEISU
Certification: ISO
Model Number: MF-800
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $10,000.00
Packaging Details: Film packing or wood package as customer requirements
Supply Ability: 200 Set/Sets per Year
Detailed Product Description
Output (kg/h): 250kg/h (PE) 160kg/h (PP) 350kg/h (PE) Disc Diameter: 600mm
Output Size (mesh): 10-100 Mesh Power (kW): 45
Range Of Spindle Speed(r.p.m): 4200 Rpm Dimension(L*W*H): 2000mm*2800mm*3200mm
Blade Disc Quantity: 2 Pieces Off Fan Blower Motor Power: 1.1Kw
Fan Blower Motor Power: 11Kw Port: SHANGHAI Or NINGBO PORT
High Light:

High Speed SPC Pulverizer

,

HDPE Pulverizer Machine

,

PVC Pulverizer With Air Cold Chiller

High Speed MF-600 HDPE Pulverizer Grinding Pulverizer Machine With Air-Cold Chiller



Technical features of High Speed MF-600 HDPE Pulverizer Grinding Pulverizer Machine With Air-Cold Chiller:
1. New type grinding disc design, high quality, strong wear resistance, grinding disc life is twice that of ordinary grinding discs.
2. Newly designed professional bearings, high speed. At the same time, only one drive motor is used to ensure efficient grinding and collision, which greatly saves the time of machine operation and engineering control.
3. Easy to install and maintain, just open the door for cleaning.
4. The whole grinding process is sealed and there is no dust leakage.
5. Fully automatic design, automatic feeding, discharging and sorting.
6. The gap adjustment is simple, just use feeler gauge and adjusting bolt to fine-tune.
7. The mill adopts a water-air dual cooling system.
8. Abundant optional accessories, professional solutions can be made according to the customer's budget and processing requirements.



Technical of of High Speed MF-600 HDPE Pulverizer Grinding Pulverizer Machine With Air-Cold Chiller:

Model
SMF-400
SMF-610
SMF-800
Blade disc size
400mm
610mm
800mm
Blade Disc quantity
2 pieces
2 pieces
2 pieces
Shaft rotary speed
4500 rpm
4200 rpm
3700 rpm
Main motor power
30kw
45kw
55kw
Blower power
3kw
5.5kw
7.5kw
Flow valve power
0.75kw
0.75kw
1.1kw
Powder size
10-100mesh
10-100 mesh
10-100 mesh
Cooling method
Air cooling & water cooling
Air cooling & water cooling
Air cooling & water cooling
Capacity
150kg/h (PE)
80kg/h (PP)
20kg/h (PE)
250kg/h (PE)
160kg/h (PP)
350kg/h (PE)
350-400kg/h (PE)
200-250kg/h (PP)
500kg/h (PE)
Machine size
2500*2000*3000mm
2800*2300*3000mm
3200*2800*3200mm


Description of High Speed MF-600 HDPE Pulverizer Grinding Pulverizer Machine With Air-Cold Chiller:

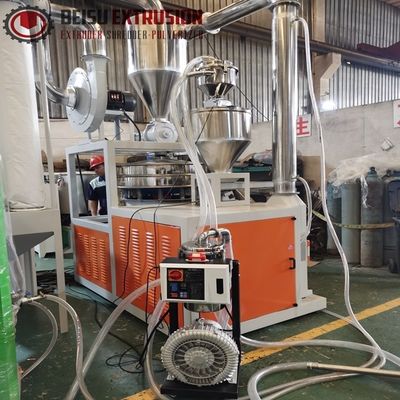

The disc diameter of the MF series disc mill is 400mm to 800 mm. These plastic shredders are high-speed, precision grinders used to process medium-hard, impact-resistant and fragile materials. The pulverized material is introduced through the center of a vertically fixed grinding disc, which is mounted concentrically with an identical high-speed rotating disc. The centrifugal force brings the material into the grinding zone, and the resulting powder is collected by a blower and cyclone system. Depending on the application, the machine can be equipped with an integrated grinding disc or grinding section.
The plastic shredder is mainly composed of a motor, a disc blade, a feed fan, a vibrating screen, and a dust removal system.
Some accessories can be selected according to the needs of customers, such as converters, vacuum feeders, screw feeders, magnetic nets, metal separators, chillers, pulse dust collectors, weighing packaging machines, etc.



High Speed MF-600 HDPE SPC Pulverizer Grinding Machine With Air Cold Chiller 0
High Speed MF-600 HDPE SPC Pulverizer Grinding Machine With Air Cold Chiller 1

High Speed MF-600 HDPE SPC Pulverizer Grinding Machine With Air Cold Chiller 2



High Speed MF-600 HDPE SPC Pulverizer Grinding Machine With Air Cold Chiller 3


High Speed MF-600 HDPE SPC Pulverizer Grinding Machine With Air Cold Chiller 4
High Speed MF-600 HDPE SPC Pulverizer Grinding Machine With Air Cold Chiller 5
