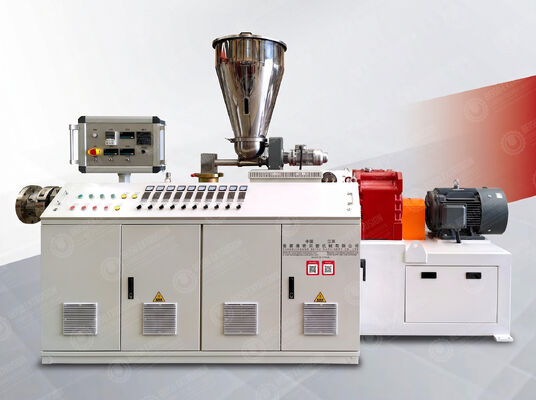

75mm-250mm PVC Pipe Extruder Making Machine With R-type Expanding Accessories

Large Image : 75mm-250mm PVC Pipe Extruder Making Machine With R-type Expanding Accessories

Product Details:

Place of Origin:	CHINA
Brand Name:	BEISU
Certification:	CE
Model Number:	SJSZ-65/132

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$35000
Packaging Details:	Wooden case package or film package
Delivery Time:	35 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Model NO.:	SJSZ65/132	Screw:	Double-Screw
Electromagnetic Heater:	Ceramic Heating&Cast Alumium Heating	Motor Power:	37Kw
Cooling Method:	Air Cooling	Application Materials:	CPVC/UPVC/WPC/SPC
Motor Brand:	Internationally Renowned Brand	Cutting Method:	Planetary Cutting Machine
Inverter:	Schenider Or ABB Or Delta

BEISU Extruder is a professional manufacturer for kinds of plastic pipe machines, PVC profile and panel machines, and plastic recycling machines, etc. We produce PVC UPVC CPVC pipe production line and HDPE PP PPR pipe production line in different diameters. PVC & UPVC Pipe Production Line is used to produce PVC & UPVC Pipe with different diameter and wall thickness which is widely used in agricultural water supply, drainage pipe, electric conduit pipe and so on.

Feature of Machines:

1- PLC control, high degree of automation
2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining

Produce process:
PVC powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker

Technical Parameters:

Diameter(mm)	16-40dual	20-63dual	20-63	75-200	160-315	315-630
Extruder model	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power (kw)	18.5	37	18.5	37	55	110
Max lineal speed (m/min)	0.5-10	0.5-15	0.5-10	0.5-8	0.5-6	0.5-4
Max capacity (kg/h)	120	250	80-120	180-250	300-450	500-600

Main Composition of PVC Pipe Making Machine:

No.	Item	Quantity
1	SJSZ series conical twin screw extruder (Equipped with automatic feeding unit) Different models for options: SJSZ51/105, SJSZ65/132, SJSZ80/156 and SJSZ92/188. High quality electrical components, like Omron, Fuji, Delta, etc. Alloy screw & barrel, which guarantee high quality and stable output. Equipped with high qualty gearbox and distributor. Extruder control by PLC screen touch is available as well;	one set
2	Die and Mold	One set
3	Vacuum calibration water tank GF series Vacuum calibration Tank, SUS304 with spraying painting or pure SUS304 body is for option. Available sizes for different pipe diameters from 16mm upto 800mm. Equipped with famous and high-quality vacuum pump and water pump with overload protection; water temperature auto controlling. 4/6/8/10/12 cooling tubes installed inside of the Tank, with ABS sprayers. 5meters, 6meters, 9meters and other lengths for option, according to different pipe pressure requirements.	One set
4	Haul-off unit For different pipe diameters, we offer the suitable Haul off unit, like Double claw, Four-claw, three claw, four claw, six claw, eight claw, etc. Machine speed control is with ABB Inverter. Machine is controlled together with Vacuum calibration Tank and Cutter.	One set
5	Cutter Unit Normal Knife-lifting Cutter and Planetary Cutter are available for small and large pipe diameters. Both types of cutters are equipped with dust collector.	One set
6	Stacker	One set
	Optional auxiliary machines in production for your choice
A	Printer	one set
B	Mixer · Mixing PVC powder, CACO3 and other addictives. · Widely used in PVC pipe and profile production. · Composed of high speed mixer (hot mixer), cooling mixer and control cabinet. · Stainless steel SUS304 for the internal wall construction. It will guarantee the mixer could use for long time under the high friction. · The mixing blades are passed the static and dynamic balance testing. And the main shaft adopts fine sealing to prevent material leakage.	one set
C	Crusher	one set
D	Milling machine	one set
5	Belling machine	one set

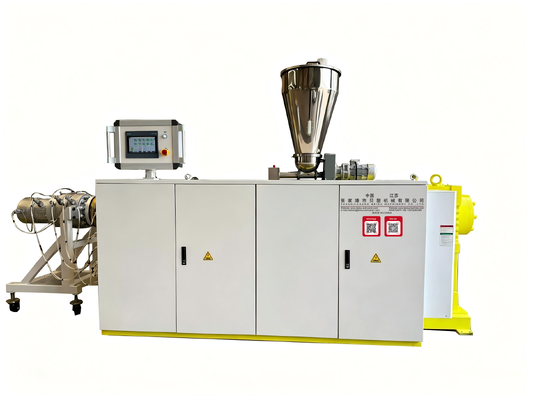

75mm-250mm PVC Pipe Extruder Making Machine With R-type Expanding Accessories

Zhangjiagang Beisu Machinery Co,Ltd is a certified manufacturer, exporter and supplier of

plastic PVC/PE/PP/PET/EVA/ABS processing machinery. Due to our constant commitment to

extrusion technology, we have emerged as a leading manufacturer of Plastic Extrusion

Machinery for PVC pipes Extrusion Line, HDPE pipes Extrusion Line, PVC compounding

Extruder, PPR Pipes Extrusion Line, PVC profiles Extrusion Line.

Especially High speed Plastic mixer, PVC compounding mixer, SPC mixer.WPC mixer,Plastic Granulating and Pelletizing Line,Plastic pvc pelletizing machine,Soft PVC shoes granulator, PVC compounding pelletizer and Plastic PVC pulverizer, PVC miller,SPC milling machine, WPC pulverizer, SPC pulverizer, PE pulverizer,LDPE pulverizer,PET pulverizer,ABS pulverizer,HDPE pulverizer,Plastic pulverizer, Plastic milling machine, Plastic miller machine,Plastic Crusher,PVC crusher,PE crusher,PP shredder, Plastic PVC Shredder etc for a wide range of extrusion processes.

1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.

1.Reliable

Most popular design with years' verification.
Mature supply chain for raw materials with strict quality assurance.
International famous brands of key parts i.e. ABB invertor, Internationally renowned brand electronics, Internationally renowned brand motor, Mettler Toledo scale etc.

2. Economy

BEISU Stable technology commercialized in China.
High efficiency mixing performance.
Cost effective solutions.

Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
