DBS-300 Mini Twin Shaft Shredder with 300 x 200 mm Shredding Chamber, 3 kW Drive Power, and 80–100 kg/hr Throughput

DBS-300 Mini Twin Shaft Shredder with 300 x 200 mm Shredding Chamber, 3 kW Drive Power, and 80–100 kg/hr Throughput
DBS-300 Mini Twin Shaft Shredder with 300 x 200 mm Shredding Chamber, 3 kW Drive Power, and 80–100 kg/hr Throughput DBS-300 Mini Twin Shaft Shredder with 300 x 200 mm Shredding Chamber, 3 kW Drive Power, and 80–100 kg/hr Throughput DBS-300 Mini Twin Shaft Shredder with 300 x 200 mm Shredding Chamber, 3 kW Drive Power, and 80–100 kg/hr Throughput DBS-300 Mini Twin Shaft Shredder with 300 x 200 mm Shredding Chamber, 3 kW Drive Power, and 80–100 kg/hr Throughput

Large Image :  DBS-300 Mini Twin Shaft Shredder with 300 x 200 mm Shredding Chamber, 3 kW Drive Power, and 80–100 kg/hr Throughput

Product Details:
Place of Origin: CHINA
Brand Name: DBS
Certification: CE
Model Number: DBS-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3500
Packaging Details: Wood pallet and film cover
Delivery Time: 35 working days
Payment Terms: L/C,T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Shredding Chamber Size: 300 X 200 Mm Cutter Diameter: 180 Mm
Rotational Speed: 16 Rpm Cutter Material: 9CrSi (12mm Thick, 7-tooth Design)
Drive Power: 3 KW, 380V, 60Hz, 3-Phase Throughput: 80–100 Kg/hr
Highlight:

300 x 200 mm Shredding Chamber Twin Shaft Shredder

,

3 kW Drive Power Dual-Shaft Shredder

,

80–100 kg/hr Throughput Mini Shredder Machine

DBS-300/400/500 Twin Shaft Recycling Mini Double Shaft Shredder Machine
Product Overview

A small-scale dual-shaft shredder (also known as a twin-shaft crusher) is a compact, high-torque industrial machine designed to cut, shear, and tear materials into smaller, more manageable sizes. It is widely used in small-scale manufacturing, laboratory testing, in-plant recycling, and commercial waste volume reduction.

Key Application Areas
  • In-plant and Workshop Recycling (Sprues and Scrap): Plastic waste including purge lumps, injection molding sprues and runners, blow-molded bottles, defective parts, and plastic sheets (PP, PE, ABS, PVC, PET). Rubber and elastomers such as rubber offcuts, seals, gaskets, and small tires prior to granulation. Textiles and fibers including synthetic fabric offcuts, edge trimmings, carpet scraps, and thread waste.
  • E-waste and Secure Data Destruction: Physical destruction of hard disk drives (HDDs), solid-state drives (SSDs), USB drives, credit cards, and printed circuit boards (PCBs) to comply with data privacy standards. Volume reduction of small appliances, keyboards, mice, cables, and wires to facilitate metal recovery.
  • Commercial and Organic Waste Volume Reduction: Shredding cardboard boxes, wooden pallets/crates, bubble wrap, stretch wrap, and paper cores to reduce waste volume and disposal costs. Pre-shredding medical plastic waste, syringes, blister packs, and laboratory disposables prior to sterilization or disposal. Shredding food waste, agricultural pallets, small branches, and organic waste for composting or biogas processing.
Technical Specifications
Item Description Details
1 Model DBS-300
2 Applicable Materials Marine waste; metal with thickness ≤ 2mm
3 Shredding Chamber Size 300 x 200 mm (Note: Material dimensions must be smaller than the chamber size for feeding; otherwise, the material cannot enter the shredder)
5 Cutter Diameter 180 mm
6 Rotational Speed 16 rpm
7 Cutter Material 9CrSi (12mm thick, 7-tooth design)
8 Cutter Hardness HRC55 (adjustable based on specific customer materials)
9 Number of Moving Cutters 24 pcs
10 Number of Fixed Teeth 24 sets
11 Machine Wall Thickness 16 mm
12 Steel Material Q345B
13 Frame Material High-quality square tubing
14 Drive Power 3 kW, 380V, 60Hz, 3-Phase
16 Machine Net Weight Approx. 300 kg
17 Throughput 80–100 kg/hr
Product Images

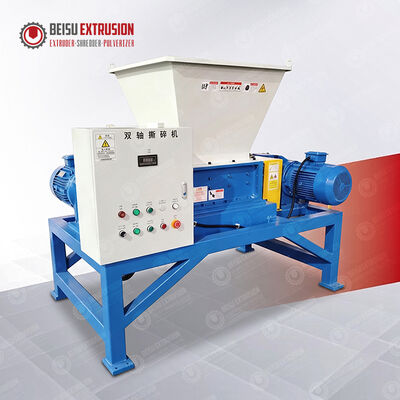

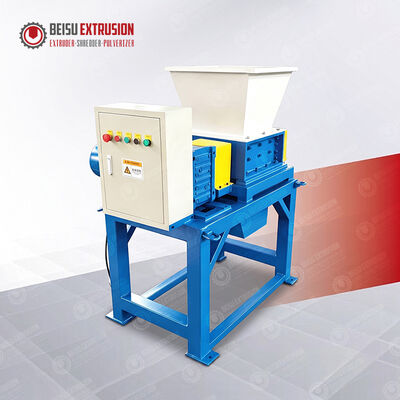

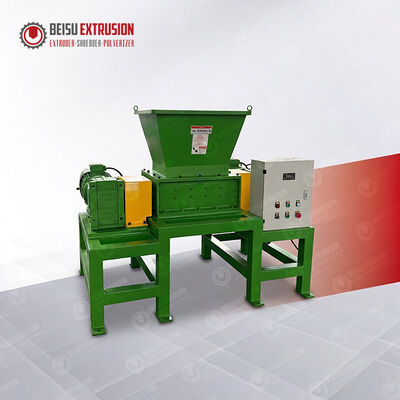

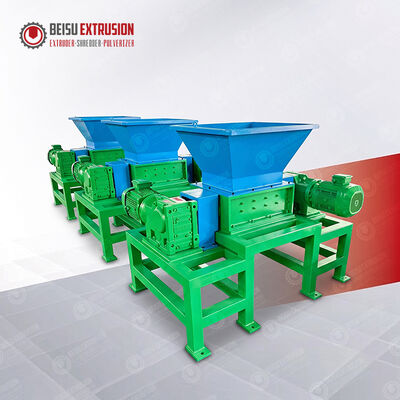

DBS-300 Twin Shaft Shredder Machine front view DBS-300 Twin Shaft Shredder Machine side view DBS-300 Twin Shaft Shredder Machine close-up of cutting mechanism DBS-300 Twin Shaft Shredder Machine control panel and operation view
Frequently Asked Questions
What materials can the small dual-shaft shredder process?
The small dual-shaft shredder can process a wide range of rigid, flexible, and bulky materials including plastics (HDPE/PP bottles, PET lumps, film rolls, plastic containers, and small purge lumps), e-waste and scrap (hard drives, circuit boards, aluminum cans, scrap copper, and small household appliances), and rubber and textiles (bicycle/motorcycle tires, rubber gaskets, cardboard boxes, wooden pallets, and leather).
What is the difference between a dual-shaft shredder and a single-shaft granulator (crusher)?
Dual-shaft shredder: Operates at low speeds (15–30 RPM) with high torque. It utilizes shearing force and does not feature a bottom screen. It is ideal for the coarse shredding of tough, elastic, or bulky materials and is resistant to clogging. Single-shaft granulator: Operates at high speeds (100+ RPM) and is equipped with an internal screen, capable of producing fine, uniform plastic granules (e.g., 6–12 mm).
How does the automatic reverse system work?
When the machine encounters hard, unshreddable material or experiences a motor current spike due to severe overload, the PLC controller automatically stops the drive, reverses the cutter shafts for a few seconds to clear the blockage, and then resumes forward shredding.
